Don R · « **on:** December 16, 2012, 08:22:37 PM »

I've been working on this for my racecar project. Wondering what I can build for my bike. Right now I have an 1 1/4" od tubing die set on the way. Will bend .065 and thicker. I might try 16 ga exhaust at some point.

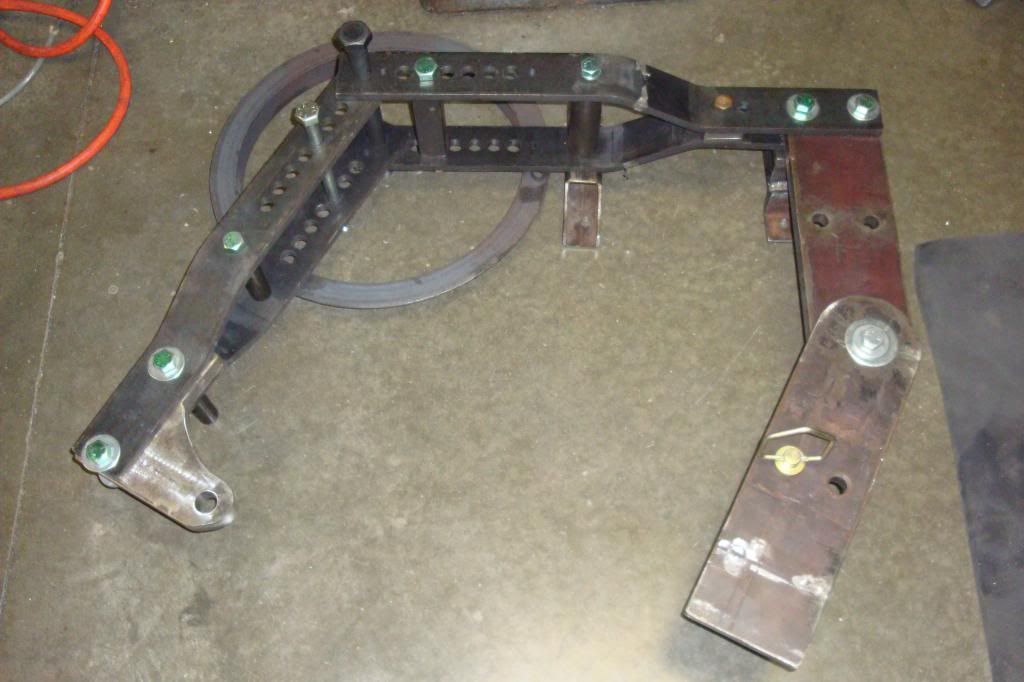

Not shown, base and hydraulic cylinder.

754 · « **Reply #1 on:** December 16, 2012, 08:52:26 PM »

The instant I get my hands on one, should be in the next few months..I should have access to one..
...I have to start on the dies to bend up some highpipe parts..

Don R · « **Reply #2 on:** December 16, 2012, 08:57:24 PM »

This resembles a #2 hossfeld, except for the hydraulic and brackets. I borrowed a #1 to build it with. It bent the 1/2"x 3 1/2" bar stock easy. I'm buying the tooling from Hossfeld, American bender looks to be the same design.

Don R · « **Reply #3 on:** December 17, 2012, 10:12:07 PM »

The die set showed up today and I can see the bracketry on the right is all wrong. minor inconvienience. Fooey.

Terry in Australia · « **Reply #4 on:** December 18, 2012, 02:49:24 AM »

That looks interesting Don, will it do nice wrinkle-free tube bends? Cheers, Terry.

Don R · « **Reply #5 on:** December 18, 2012, 09:43:47 PM »

Yes it needs .065" or heavier though. I'm thinking that's around 15 gauge. I forget the MM. They use the same one at RJ race cars our local NHRA and ADRL pro stock/pro mod builder. There are dies available to do almost any metal work. Even a punch and a shear. Williams low buck tools sells one, American Bender and the Original Hossfeld. I cheaped out and built my own.
JD2 has a different design bender that's less expensive, my experience has been on one of these.
With the hydraulic, any of them will bend 2" x 1/4" wall.

Terry in Australia · « **Reply #6 on:** December 19, 2012, 02:23:19 AM »

Looks great mate, what are you going to use it for mainly? I think our headers are either 1 1/2" or 1 3/4"? Can you buy those size dies, and are they expensive? I'd love to make my own pipes! Cheers, Terry.

Don R · « **Reply #7 on:** December 20, 2012, 07:53:59 PM »

I'm building it to bend the tubing to backhalf the dragster. I had a chassis shop add a swingarm/coil overs suspension few years ago and the builder made some poor choices which led to cracks this year. It's been parked since june.
The changes I decided to make are coincidentally in the new SFI chassis spec. rule book. Guess I'm not the only one to see this same problem.
I just bought the 1 1/4" die so far, it's about $250. Hossfeld sells dies for bending almost any metal you can get. flat, angle square etc. I've seen guys buy the next size die up, then bend a tube, slice it to make a shoe to shim the die for the next size smaller tube. We use a lot of .058" wall because it slip fits into the next size

Don R · « **Reply #8 on:** December 26, 2012, 08:24:07 PM »

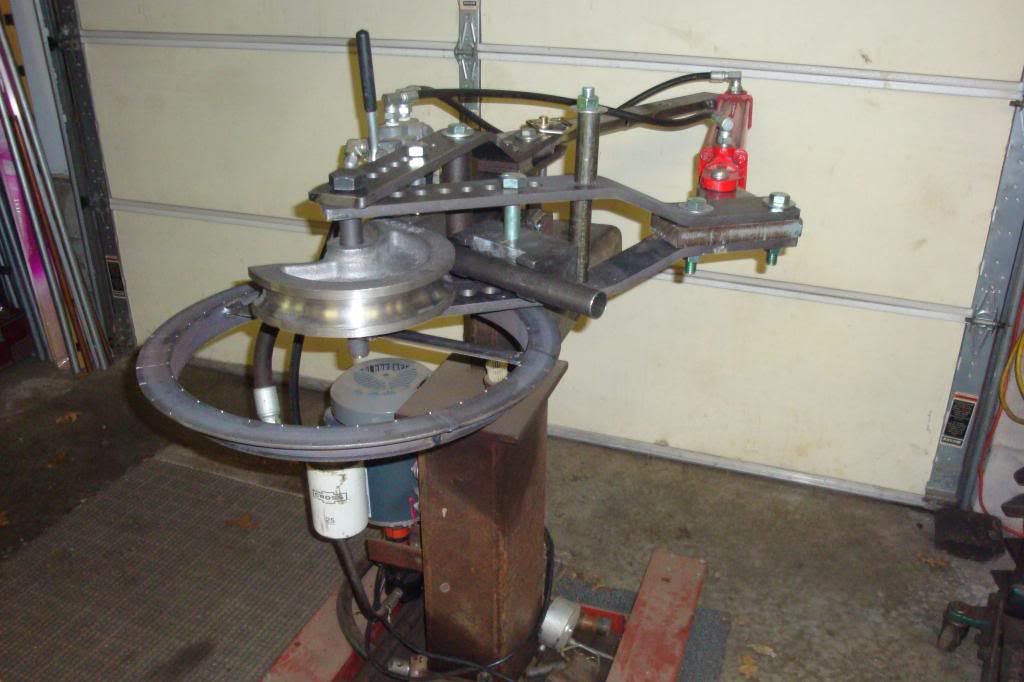

New picture, ready to rock. I released the order on the tubing today so I can go pick it up.

Terry in Australia · « **Reply #9 on:** December 26, 2012, 10:40:24 PM »

That looks great Don, what about a pic of the bent tube too? Cheers, Terry.

mono · « **Reply #10 on:** December 27, 2012, 05:36:44 AM »

wow that's a nice looking machine. good job

Killer Canary · « **Reply #11 on:** December 27, 2012, 05:56:15 AM »

Can't wait to see some headers.

Don R · « **Reply #12 on:** December 27, 2012, 10:21:04 AM »

I'm hoping my buddy that works at the race car shop can provide some short pieces to practice bend, the part in the die is the upright for the chassis so I haven't bent any tube yet. I'm picking up my order today.

Don R · « **Reply #13 on:** January 02, 2013, 11:40:49 AM »

It appears the blueprint is incorrect, the 1 1/4" wont bend properly. The pins shouldgo in the 5th holes and tube wont load. According to someone that owns one the c-c should be 5 5/8" but it's 5 3/8". I don't know if the spacing of the holes are off or just the starting point. Anyone want to start drinking in the afternoon?

Jerry Rxman Griffin aka MuthaF'er · « **Reply #14 on:** January 02, 2013, 06:37:16 PM »

Toast.... to Don

Terry in Australia · « **Reply #15 on:** January 03, 2013, 12:58:29 AM »

I've been drinking all day.....................

BLUE71TURBO · « **Reply #16 on:** January 03, 2013, 01:25:18 AM »

SWAG Harbor Freight Air Hydraulic Tube Bender Attachment

Don R · « **Reply #17 on:** January 03, 2013, 02:29:31 AM »

That's slick too, I wonder how it re-sets to bend it farther? I hadn't seen the video, that's the JD2 bender If I hadn't been given the steel and found the print I would have bought one of these.

Terry in Australia · « **Reply #18 on:** January 03, 2013, 03:38:07 AM »

That looks like pretty thick walled tubing guys, will one of those benders do exhaust tube without wrinkles? Cheers, Terry.

Don R · « **Reply #19 on:** January 05, 2013, 07:59:20 AM »

Yrp. the blueprint was wrong. Story of my life. I knew it was a leap of faith to use it. It looked so well drawn I trusted it. The holes should be 1.1" apart which makes them .035 short x each hole adds up to around 1/4" at the 5th hole. Idropped 5/8" pins in instead of the 3/4" and it falls into place. Might get this project bent before I weld it back up and start over. Next time it goes in a mill to make the holes.

Don R · « **Reply #20 on:** January 05, 2013, 03:30:22 PM »

I used 5/8" pins instead of the 3/4". that allowed for the difference in the drilled holes. The 1 1/4" bent perfectly. Now my camera phone is on the fritz. pictures when I can.

Don R · « **Reply #21 on:** January 08, 2013, 08:23:01 PM »

Don R · « **Reply #22 on:** January 08, 2013, 08:26:45 PM »

The #5 hole is off 1/4" so I made 5/8" pins to replace the 3/4" ones to temporairly make it work. 1/8 two times = 1/4"

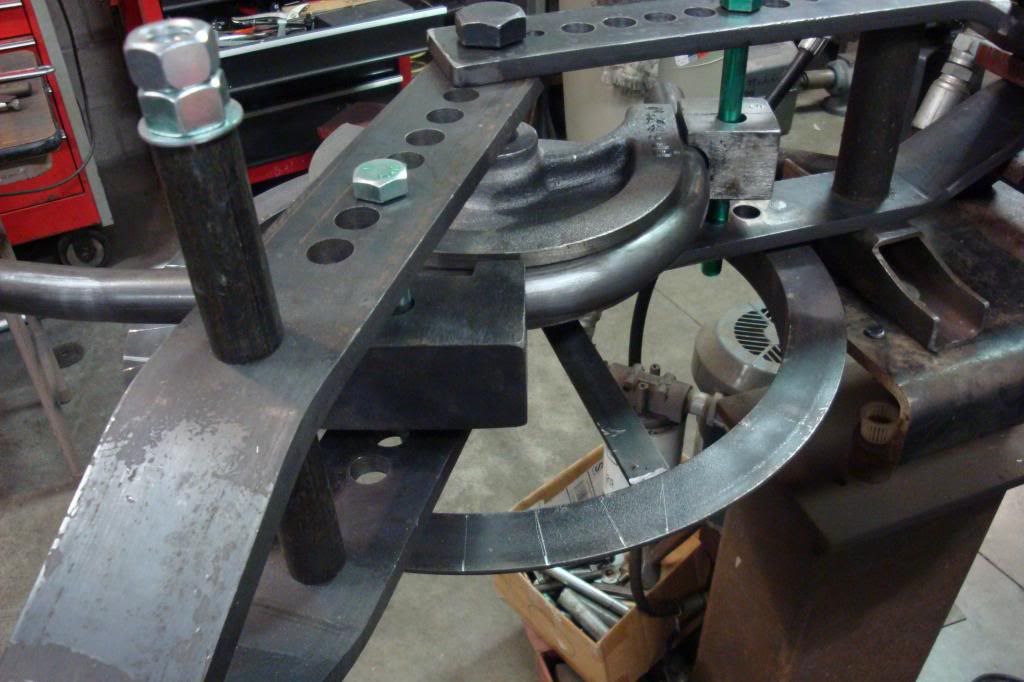

This is 1 1/4" .058 chrome moly.

70CB750 · « **Reply #23 on:** January 09, 2013, 03:07:28 AM »

Sweet!

mono · « **Reply #24 on:** January 11, 2013, 01:53:20 PM »

Lookin' good! that's quite impressive. glad it's a success!

Terry in Australia · « **Reply #25 on:** January 11, 2013, 02:55:36 PM »

Is it just my eyes, or just a trick of the light, but that doesn't look like a smooth, uniform bend Don? $:-\$

Don R · « **Reply #26 on:** January 11, 2013, 06:20:22 PM »

Quote from: Terry in Australia on January 11, 2013, 02:55:36 PM

Is it just my eyes, or just a trick of the light, but that doesn't look like a smooth, uniform bend Don? $:-\$

It's the light, my picky friend that builds NHRA pro stocks and pro mods approved of the bends. I sprayed oil all over everything and it's an old piece of tube shiney here and there.

Terry in Australia · « **Reply #27 on:** January 12, 2013, 02:39:32 PM »

That's good to know Don, as I'd like to build one of those benders too. Cheers, Terry.

Don R · « **Reply #28 on:** January 12, 2013, 07:18:27 PM »

http://www.kinzers.com/don/MachineTools/bender/

Here are the blueprints I used. Be warned, on the main frame and the swinging frame the c-c distance between the holes is incorrect. It shows 1 1/16" it is really closer to 1.1" From the center pin to the #5 25/32 hole should be 6 5/8" the print adds up to 6 3/8"
Who knows what else might be incorrect. Repeated attempts to contact him have failed.

Terry in Australia · « **Reply #29 on:** January 13, 2013, 03:14:58 AM »

Thanks Don!
