Battery LED volt meter in empty frame tab
« on: July 24, 2014, 05:09:26 PM »
Just finished up my summer restore on my 71 cb500 and thought I'd share what I did with my ballistic battery monitor. Ended up attaching it to one of the empty frame tabs. Should be pretty cool at night. I'm curious to see if it ends up draining the battery at all.

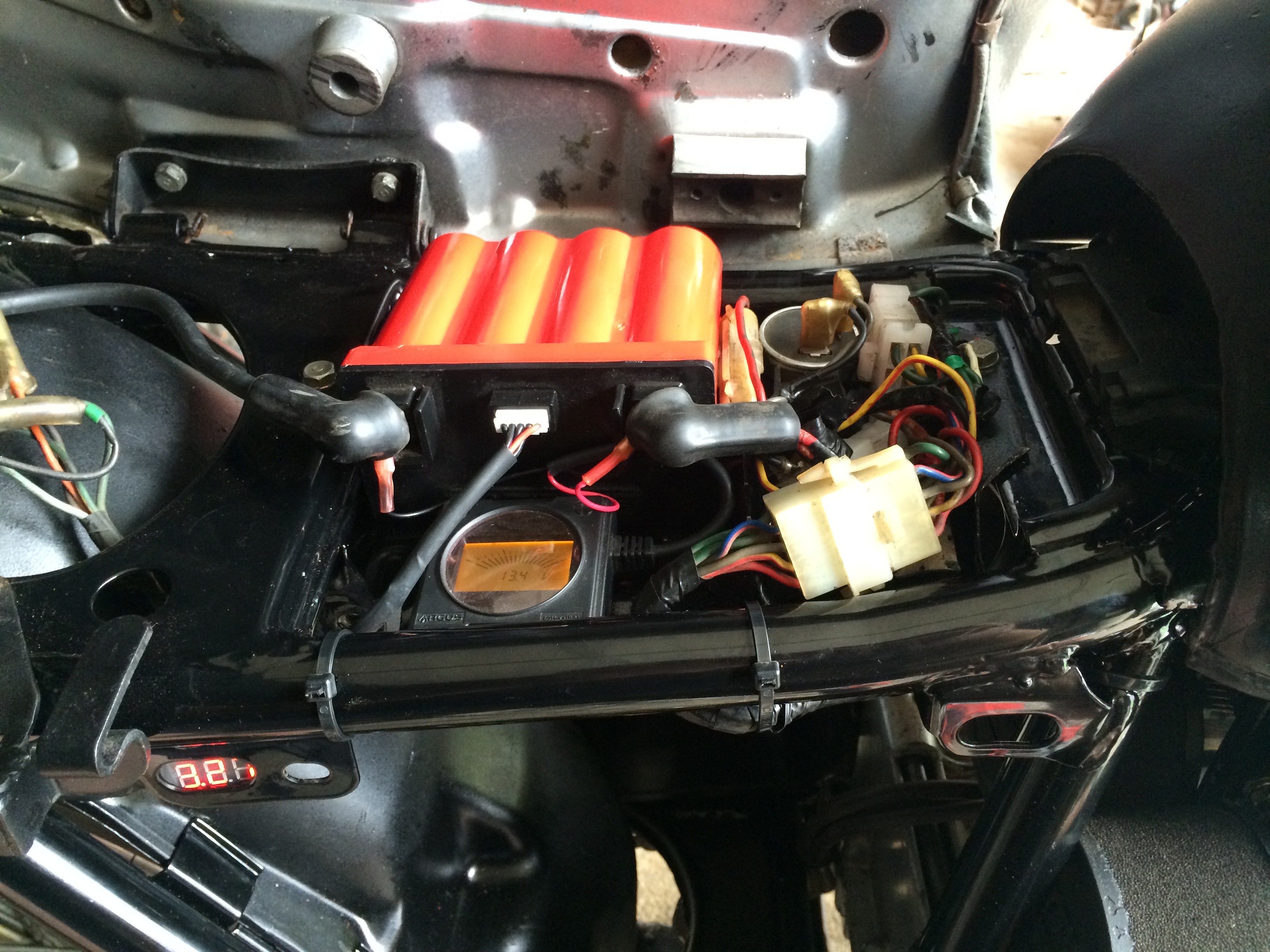

Ballistic battery monitor in cafe 71 cb500 frame tab

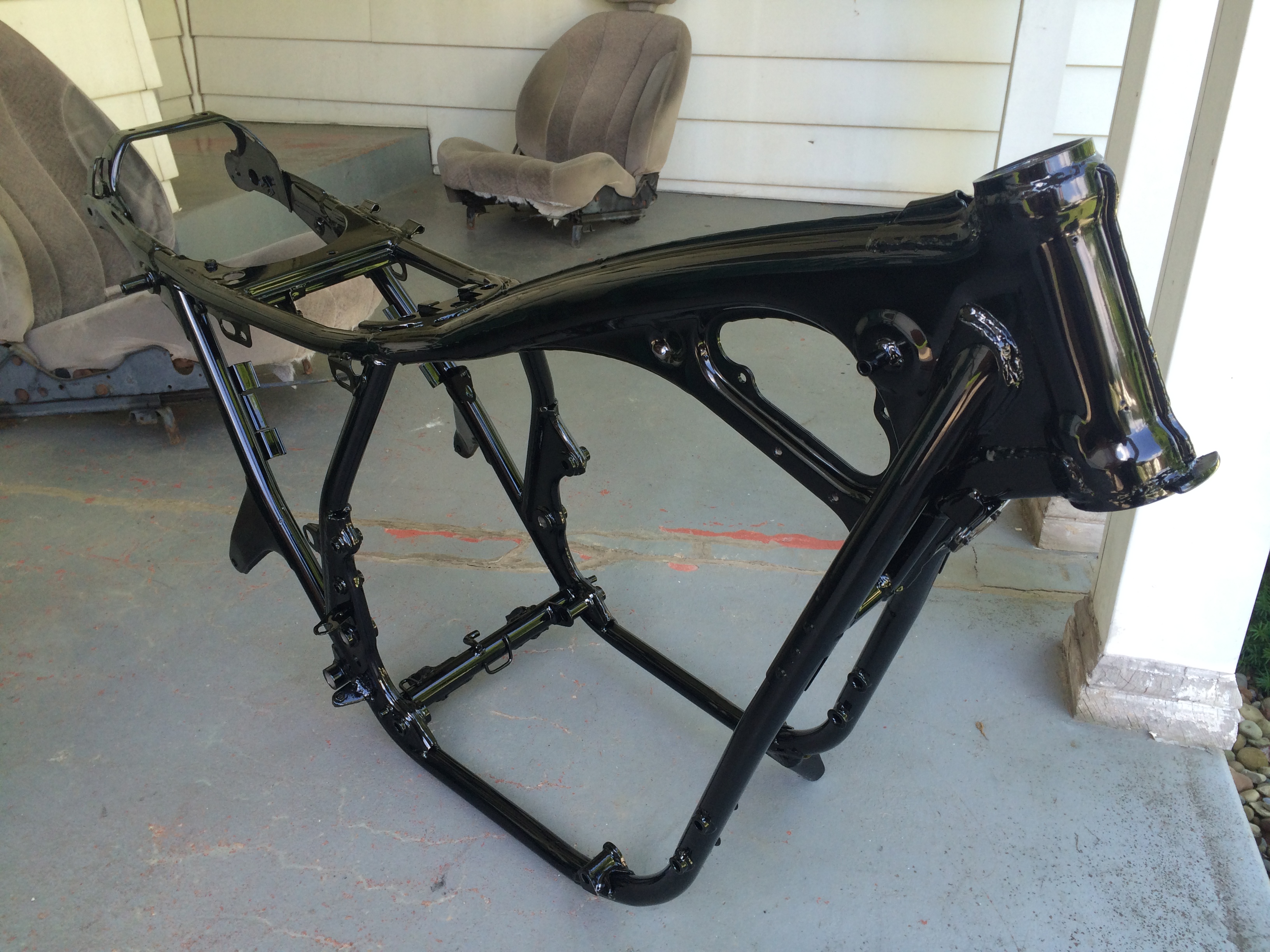

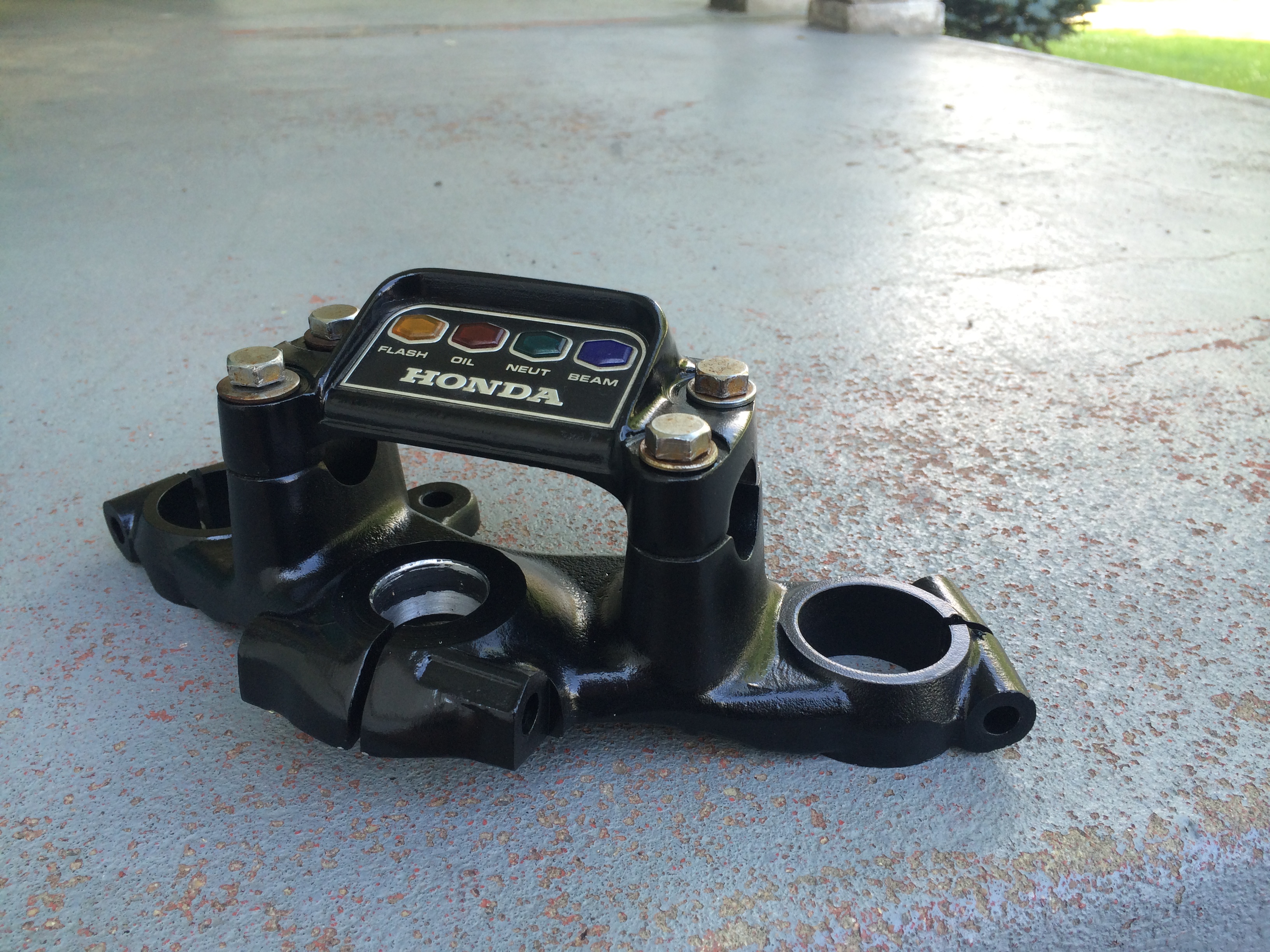

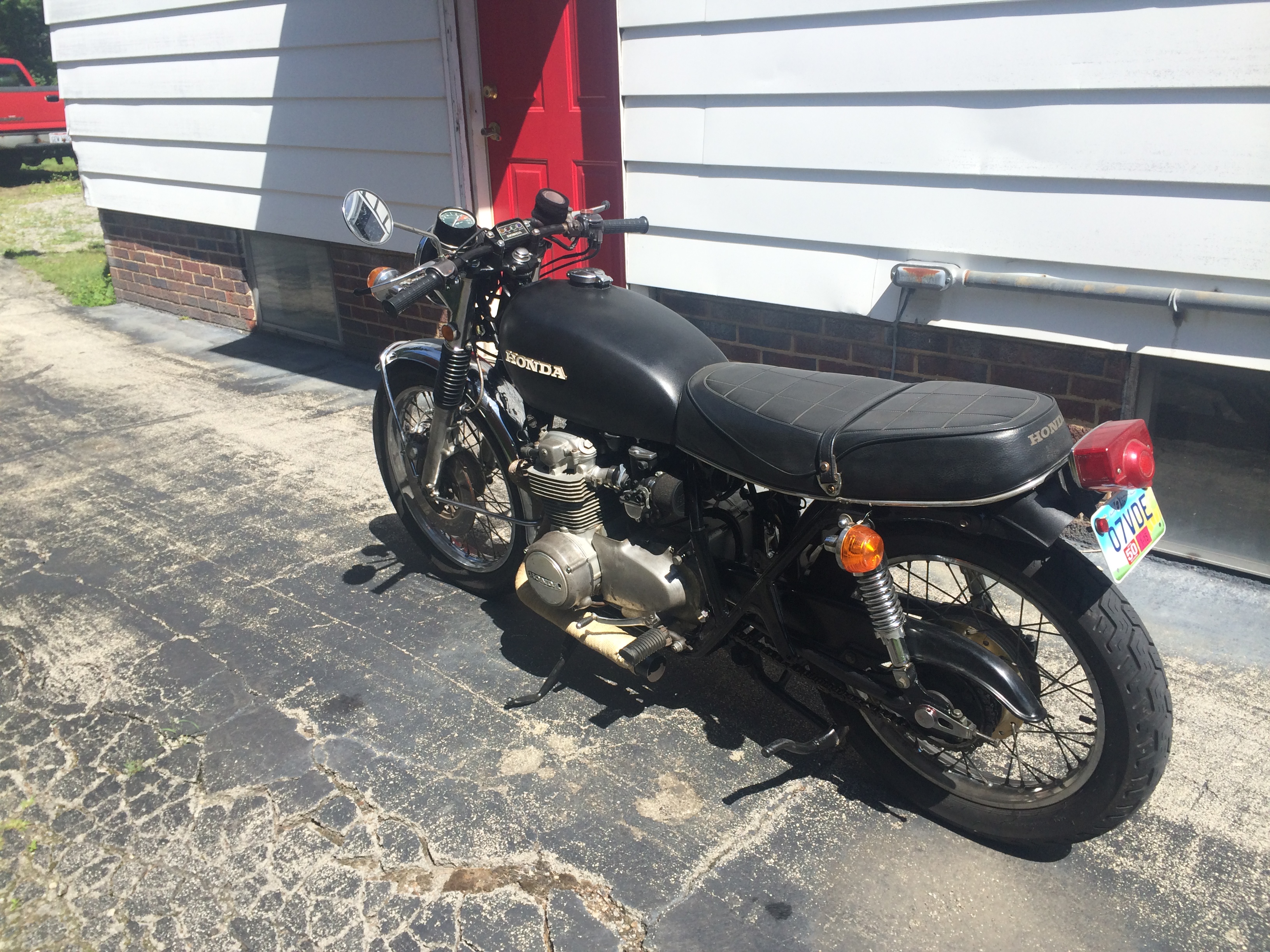

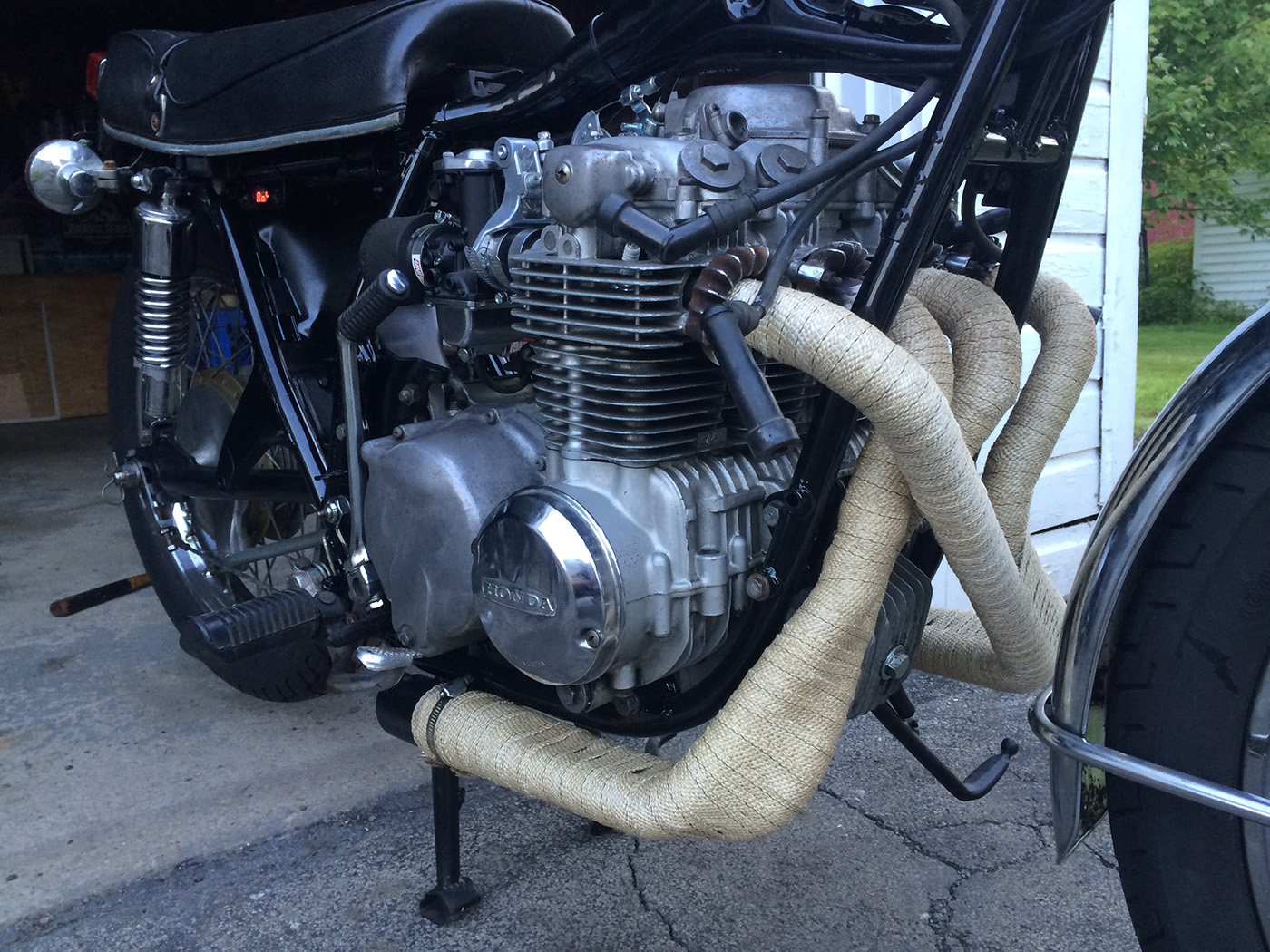

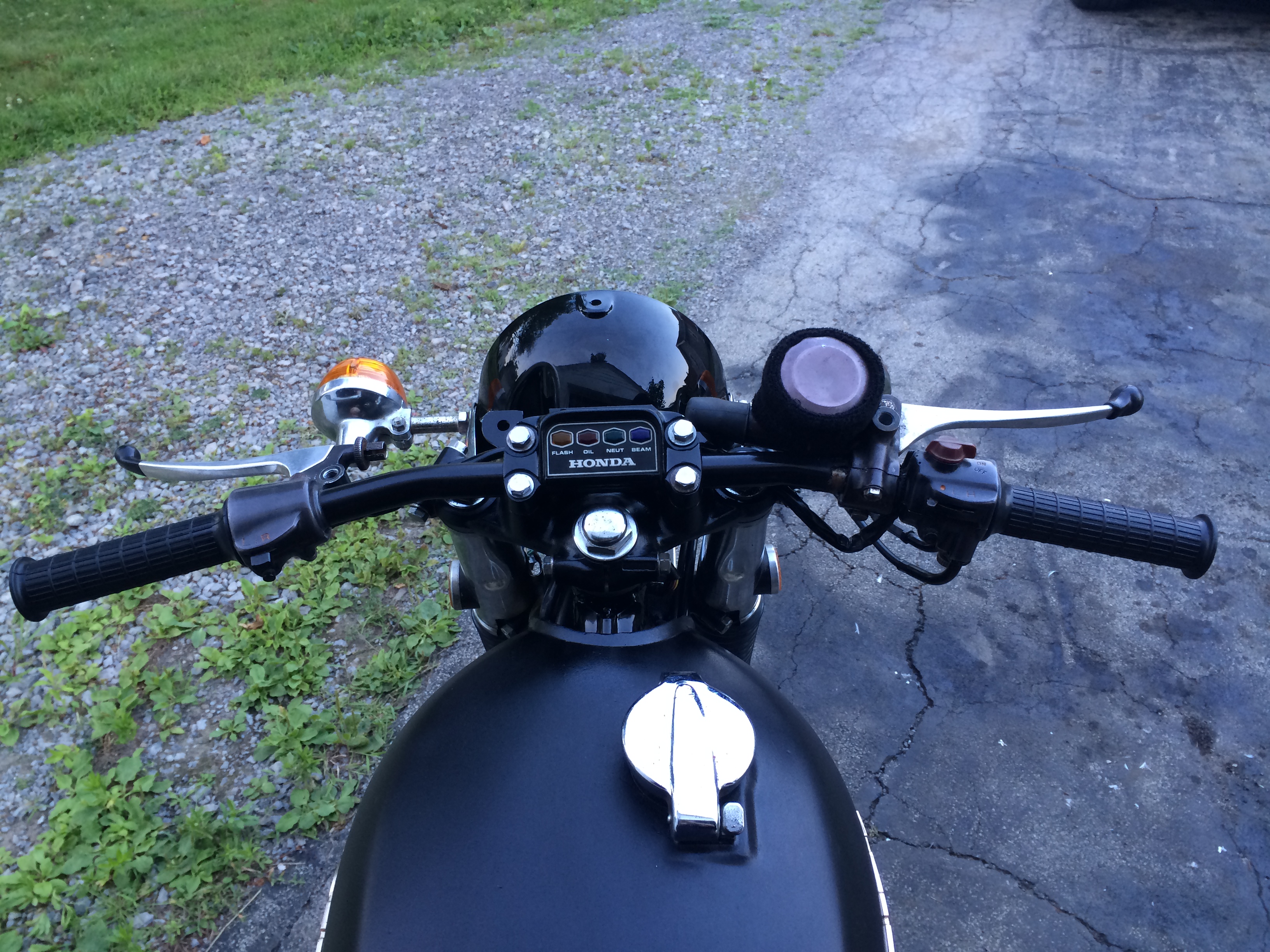

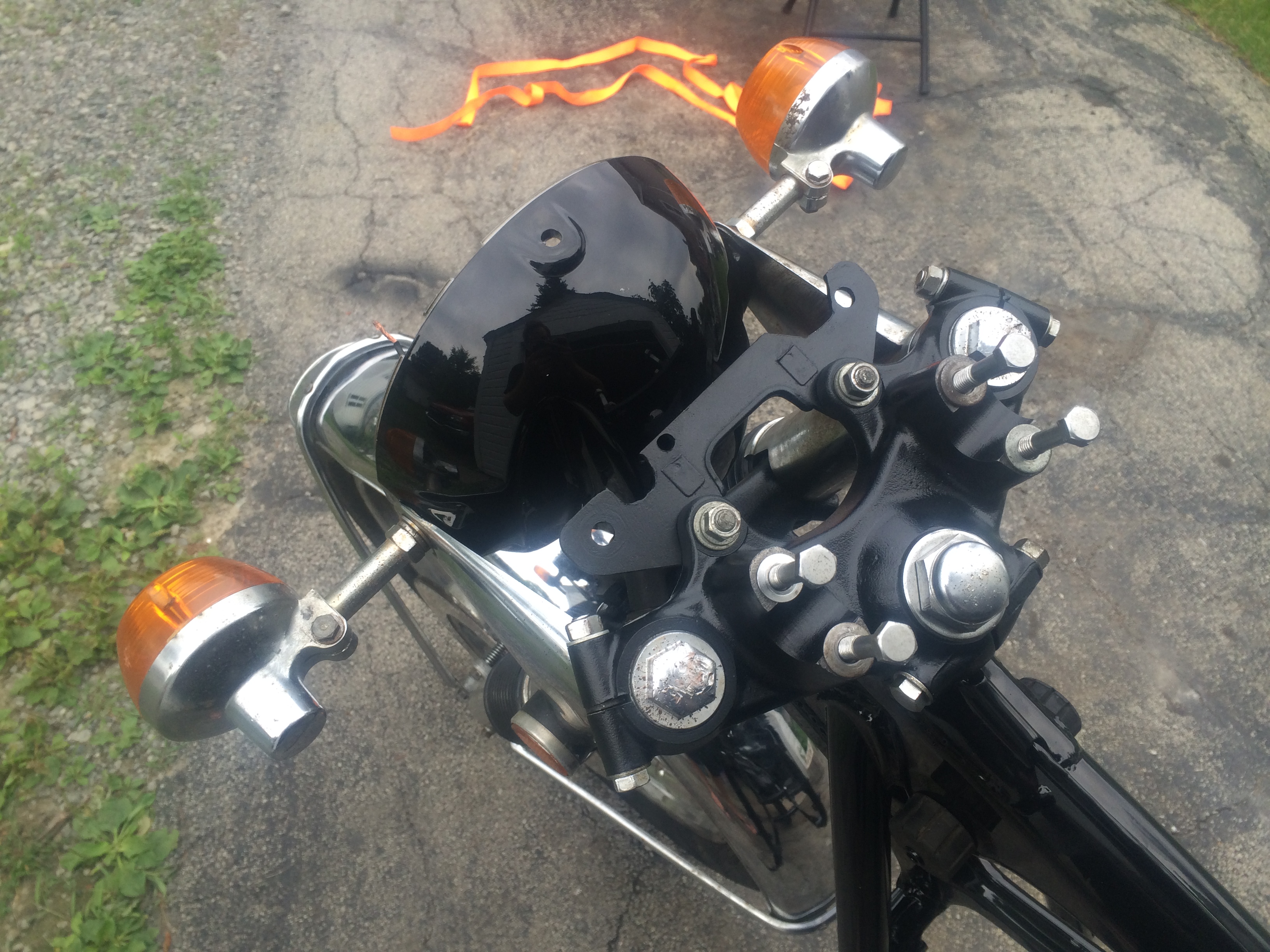

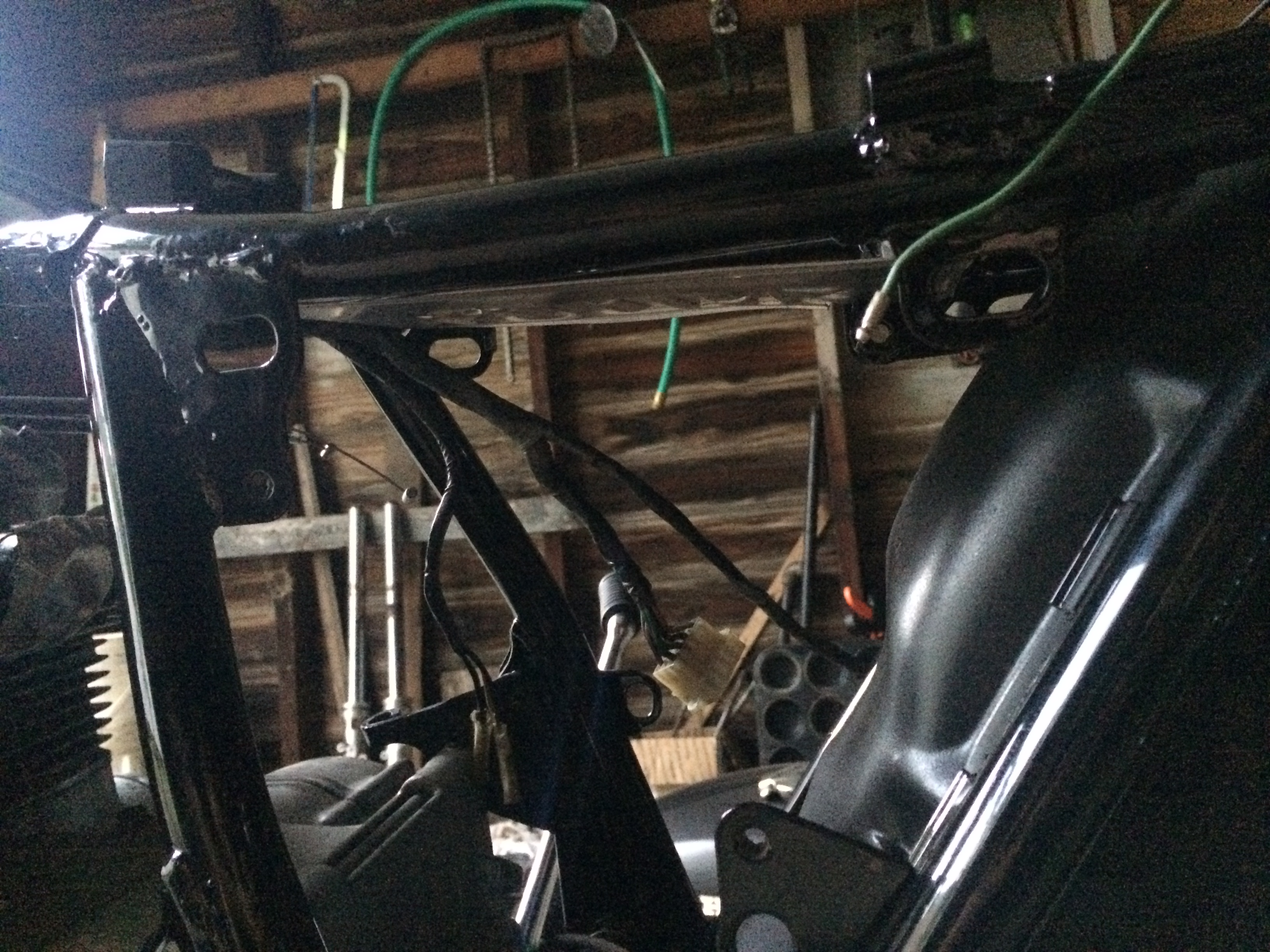

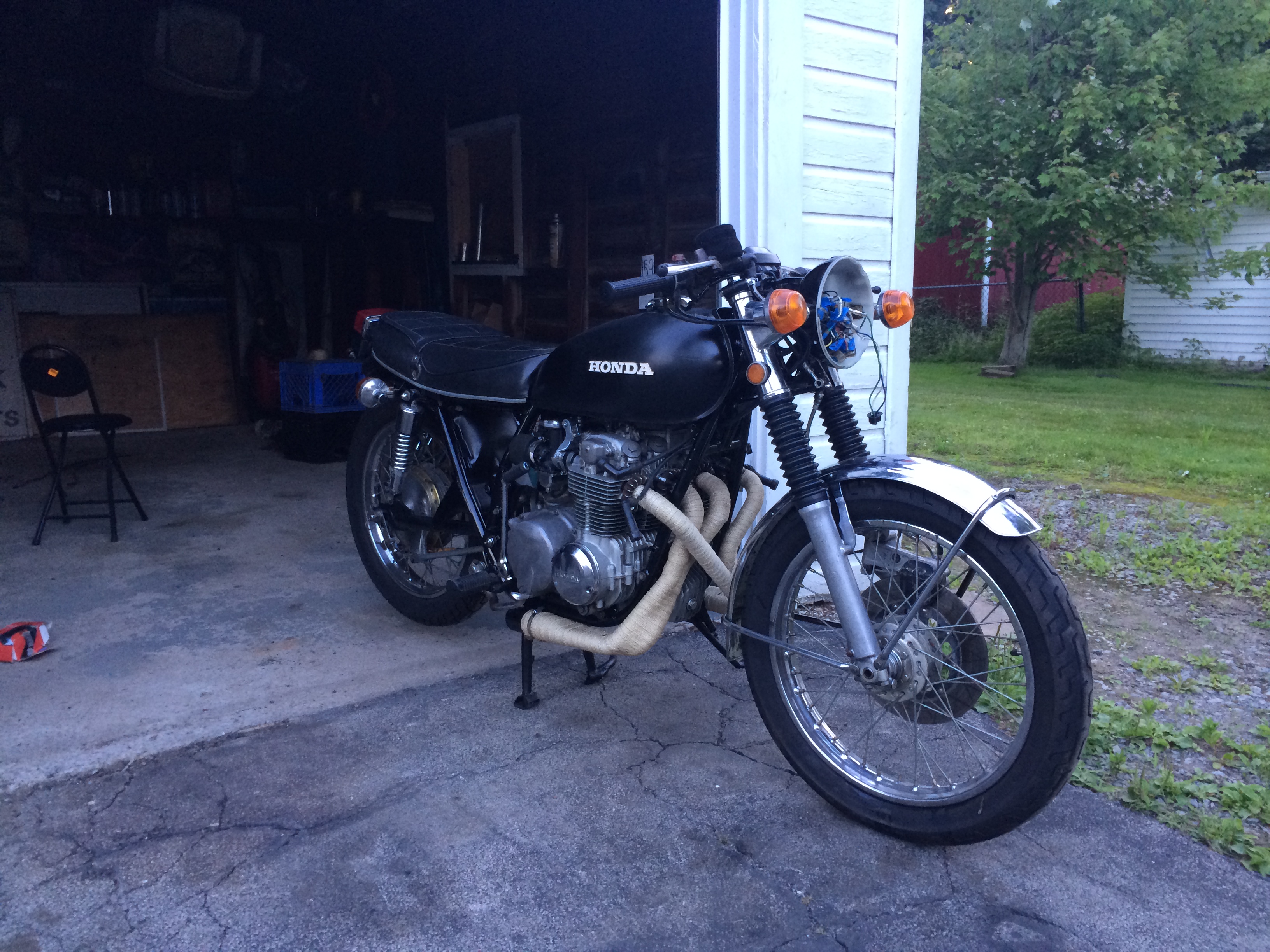

Here's some more pics of the rebuild:











« Last Edit: December 20, 2022, 04:41:17 PM by nicks2319 »
Logged

Offline sammermpc

  • Enthusiast
  • **
  • Posts: 238
Re: Battery LED volt meter in empty frame tab
« Reply #1 on: July 25, 2014, 01:05:09 PM »
Love that -- what'd you use for the voltmeter? Looks like you got other electronics jammed in there. What's the other meter?
Logged
1972 CB500, 1979 CB750F SS (dohc), 1982 Yamaha Maxim XS400

Offline nicks2319

  • Enthusiast
  • **
  • Posts: 202
  • Youngstown, OH
Re: Battery LED volt meter in empty frame tab
« Reply #2 on: July 25, 2014, 01:17:19 PM »

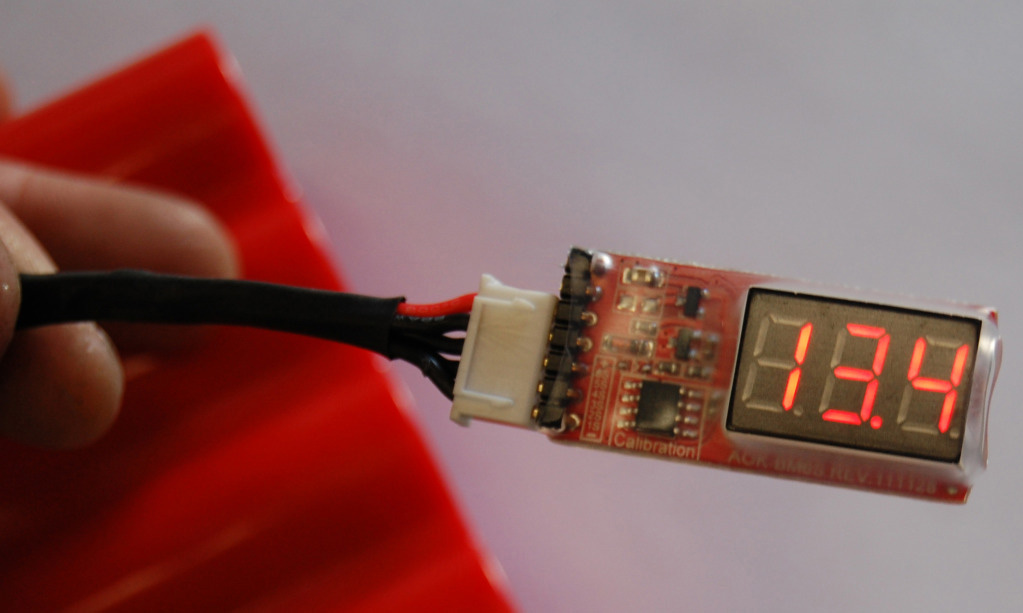

Bought the LED monitor from here, but looks like he is no longer making any :(

http://www.advrider.com/forums/showthread.php?t=790886



I also have an Argus Battery bug in there, but not connected all the time. Starter and starter solenoid are removed.
« Last Edit: December 13, 2016, 05:59:26 PM by nicks2319 »
Logged

Offline flybox1

  • My wife thinks I'm a
  • Really Old Timer ...
  • *******
  • Posts: 14,289
Re: Battery LED volt meter in empty frame tab
« Reply #3 on: July 25, 2014, 01:25:22 PM »
nice!
got mine for about $4 off ebay.  Its no bigger than a quarter. comes in 3-4 colors.
I sealed all but the face with some black plastidip spray.
Had it wired into my headlight there, so it reads a litte low with the bike off, but I rewired it to my starter solenoid during my rebuild and it reads true now.

« Last Edit: July 25, 2014, 01:34:34 PM by flybox1 »
Logged
'78 750K (F3 engine) PD42b's, Modified airbox w/K&N  filter, 40/110 jets, 1 needle shim, IMS@ 1 turn out. Kerker + Cone 18" QuietCore

Past Bikes
1974 550K0 (stock), 1973 CB350F (stock), 1983 Yamaha XS400K (POS)
77/78 cool 2 member #3
"Knowledge without mileage equals bullsh!t" - Henry Rollins

"This is my CB. There are many like it, but this one is mine…"

Offline Tetter

  • Full Member
  • *
  • Posts: 78
  • CB500F Café - CB750F K6
Re: Battery LED volt meter in empty frame tab
« Reply #4 on: July 25, 2014, 01:41:47 PM »

Quote from: flybox1 on July 25, 2014, 01:25:22 PM
nice!
got mine for about $4 off ebay.  Its no bigger than a quarter. comes in 3-4 colors.
I sealed all but the face with some black plastidip spray.
Had it wired into my headlight there, so it reads a litte low with the bike off, but I rewired it to my starter solenoid during my rebuild and it reads true now.



Cool, would you happen to know from which seller you bought it ?


Verzonden vanaf mijn iPhone met behulp van Tapatalk
Logged

Offline bjbuchanan

  • Master
  • *****
  • Posts: 2,274
Re: Battery LED volt meter in empty frame tab
« Reply #5 on: July 25, 2014, 01:45:02 PM »
Nice build.

Do you have a build thread?
Logged
The dirty girl-1976 cb750k, Ebay 836, Tracy bodykit
Round top carbs w/ 38 pilots, middle needle position, airscrew 7/8ths out, 122 main jet
Stock airbox w/ drop in K&N, Hooker 4-1

Don't trust me alone with a claw hammer and some pliers

Offline nicks2319

  • Enthusiast
  • **
  • Posts: 202
  • Youngstown, OH
Re: Battery LED volt meter in empty frame tab
« Reply #6 on: July 25, 2014, 01:57:23 PM »
Quote from: bjbuchanan on July 25, 2014, 01:45:02 PM
Nice build.

Do you have a build thread?

Thanks, and nope, it was a quick build. Had it back together in a couple days after I got the frame back from powdercoat.
Logged
