Re: CB550 Track Bike Goes Racing
« Reply #100 on: May 09, 2019, 05:17:45 AM »
Good luck this season. Hoping there's a smile on your face, post dyno work!
Logged

Offline turboguzzi

  • Old Timer
  • ******
  • Posts: 4,083
Re: CB550 Track Bike Goes Racing
« Reply #101 on: May 09, 2019, 01:51:49 PM »
some nice new goodies in the there. will be interesting to see if you feel a difference before/aft. in terms of crank weight. how many has been taken off?
carillo rods are good for piece of mind, even if the 500/550 doesnt seem to suffer in that area as the 750. hope the sump mods solve your oil issues.
Logged

Offline Rocketman

  • Hot Shot
  • ***
  • Posts: 391
Re: CB550 Track Bike Goes Racing
« Reply #102 on: May 09, 2019, 02:30:39 PM »
With the Carrillo rods I should see a little less stretch and can tighten up the squish from .040 to .035.  The stock crank weighed 19.5 lbs. on my bathroom scale and 16.5 after lightening.  Not super accurate, but a 3 lbs. difference.

Worked on installing the Cycle X straight intake manifolds today and re-racking the carburetors.

Here are the new manifolds with two rubbers boots installed.  Forty millimeter Honda clamps are just right.  95018-40250  This part number works for multiple carb clamps, just change to 40 to the size desired.



Re-racked carbs mounted.



You need to purchase the bracket on the side of carb #2 that holds the fuel "T" in place.  Without it the fuel "T" can slip out and allow fuel to spill.  Sudco carries them.



Looking down the carb mouth you can just see the valve guide at the back!  A nice straight shot for the air/fuel mixture.

Logged

Offline MRieck

  • Really Old Timer ...
  • *******
  • Posts: 10,560
  • Big ideas....
Re: CB550 Track Bike Goes Racing
« Reply #103 on: May 10, 2019, 05:04:18 AM »
 Tightening the squish will make a really nice difference....that's where the power is.
Logged
Owner of the "Million Dollar CB"

Offline turboguzzi

  • Old Timer
  • ******
  • Posts: 4,083
Re: CB550 Track Bike Goes Racing
« Reply #104 on: May 10, 2019, 07:49:27 AM »
now that i see the manifolds installed, got to tell you that i am not excited about the way they block out the exit of hot air at the back of the head,

all that effort with exotic coatings to reduce thermal load and then this? :)

would cut off the plate around the inlet bore and two screws and leave each manifold alone.

thats the way i built mine, never had a problem with rigidity or sealing, weights a ton less and keeps air passage free

will post a pic later, not at home now

Logged

Offline turboguzzi

  • Old Timer
  • ******
  • Posts: 4,083
Re: CB550 Track Bike Goes Racing
« Reply #105 on: May 10, 2019, 11:19:05 AM »
found my original thread
think this pic explain well the free air passage behind the head
Logged

Offline simon#42

  • Old Timer
  • ******
  • Posts: 2,585
  • liverpool
Re: CB550 Track Bike Goes Racing
« Reply #106 on: May 10, 2019, 11:28:20 AM »
yes i must agree with tg , you have created an air dam . by the end of the back straight that head will be very very hot .
Logged

Offline bwaller

  • Really Old Timer ...
  • *******
  • Posts: 7,484
Re: CB550 Track Bike Goes Racing
« Reply #107 on: May 10, 2019, 12:21:44 PM »
Relieve the back side, trim all you can off it and drill a bunch of big holes.
Logged

Offline Rocketman

  • Hot Shot
  • ***
  • Posts: 391
Re: CB550 Track Bike Goes Racing
« Reply #108 on: May 10, 2019, 12:56:30 PM »
I had not considered the effect on air flowing through the head!  Will need to take a good look and determine the best way to open it up.  Good call TG!  Thanks.
Logged

Offline MRieck

  • Really Old Timer ...
  • *******
  • Posts: 10,560
  • Big ideas....
Re: CB550 Track Bike Goes Racing
« Reply #109 on: May 11, 2019, 10:39:57 AM »
 Sure is a good point....wish i had thought of that while I modifying them. TG.....I noticed the length of your manifold/insulators set up. Have you tried shortening them?
Logged
Owner of the "Million Dollar CB"

Offline turboguzzi

  • Old Timer
  • ******
  • Posts: 4,083
Re: CB550 Track Bike Goes Racing
« Reply #110 on: May 11, 2019, 02:20:03 PM »
Quote from: MRieck on May 11, 2019, 10:39:57 AM
Sure is a good point....wish i had thought of that while I modifying them. TG.....I noticed the length of your manifold/insulators set up. Have you tried shortening them?
that pic is from the first build with the VM26s 12 yrs ago... in the later iteration with CR29 they sit closer to the head.
Logged

Offline MRieck

  • Really Old Timer ...
  • *******
  • Posts: 10,560
  • Big ideas....
Re: CB550 Track Bike Goes Racing
« Reply #111 on: May 12, 2019, 09:19:46 AM »
I understand. Brent's engine has benefitted from shortened manifolds.
Logged
Owner of the "Million Dollar CB"

Offline bwaller

  • Really Old Timer ...
  • *******
  • Posts: 7,484
Re: CB550 Track Bike Goes Racing
« Reply #112 on: May 12, 2019, 10:09:19 AM »
It's a bit tough to understand. From my 1973 school notes and formulas my intakes should have been really long. It always seemed the British race bikes used longer intakes.

I'm not sure what i would have done if left to my own devices, but this guy I know, Mike Rieck, convinced me to make them short for improved signal. So the cable stays touch the valve cover, about as short as they can be.

I think he was right!  ::)  ;D
Logged

Offline MRieck

  • Really Old Timer ...
  • *******
  • Posts: 10,560
  • Big ideas....
Re: CB550 Track Bike Goes Racing
« Reply #113 on: May 12, 2019, 05:10:41 PM »
Quote from: bwaller on May 12, 2019, 10:09:19 AM
It's a bit tough to understand. From my 1973 school notes and formulas my intakes should have been really long. It always seemed the British race bikes used longer intakes.

I'm not sure what i would have done if left to my own devices, but this guy I know, Mike Rieck, convinced me to make them short for improved signal. So the cable stays touch the valve cover, about as short as they can be.

I think he was right!  ::)  ;D
Yes...I have also seen long intake tracts for old British (Truimphs in particular) bikes. Different animals with large valves, longer duration working at much lower RPM's
Logged
Owner of the "Million Dollar CB"

Offline Rocketman

  • Hot Shot
  • ***
  • Posts: 391
Re: CB550 Track Bike Goes Racing
« Reply #114 on: May 15, 2019, 05:58:51 PM »

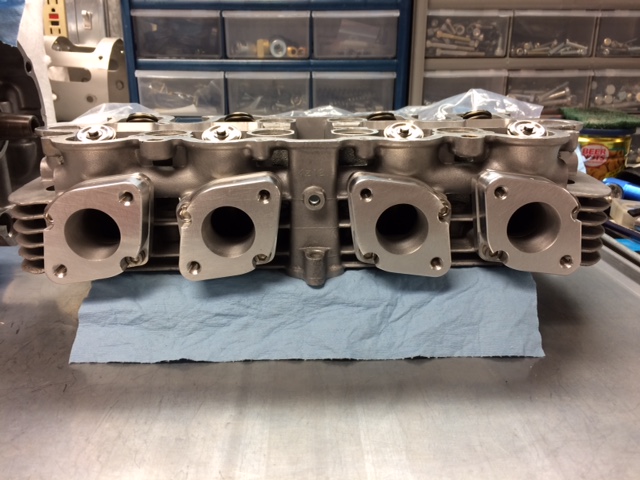

The new and improved intake manifolds!

Before & after.



Now that's what I'm talking about.  Lots of airflow now!



It is good to have friends with machine tools.



Big thanks to TG for spotting the issue.
Logged
