Harald F · « **Reply #78 on:** March 03, 2017, 05:16:43 PM »

Things are moving forward..

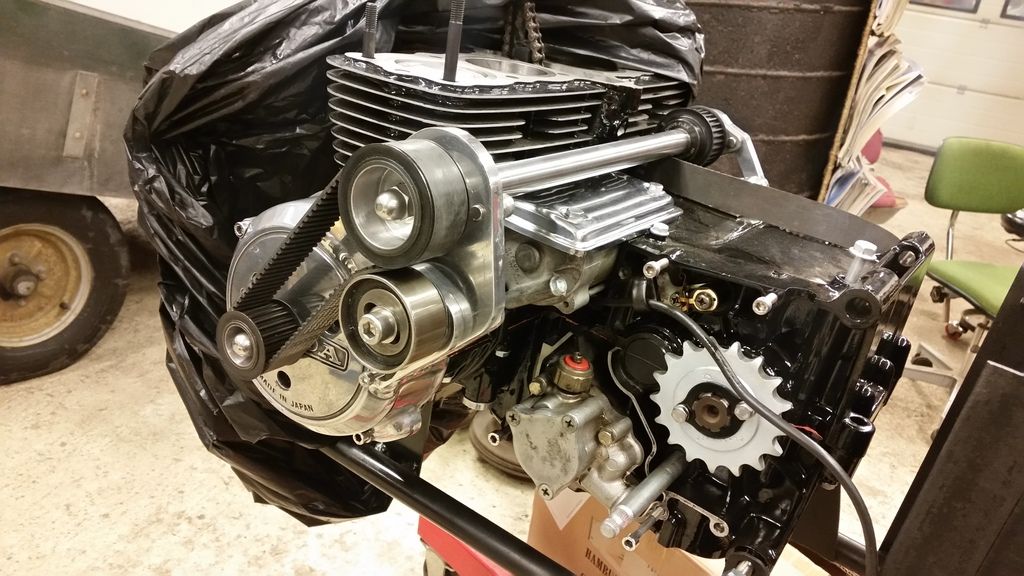

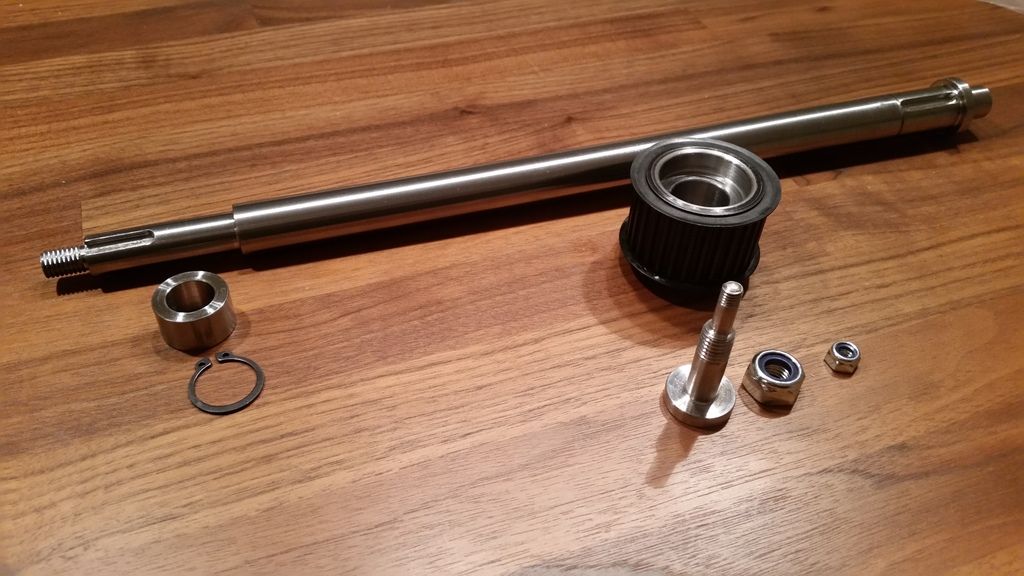

The main shaft for the supercharger is done, keyed slots to hold the pulleys++.

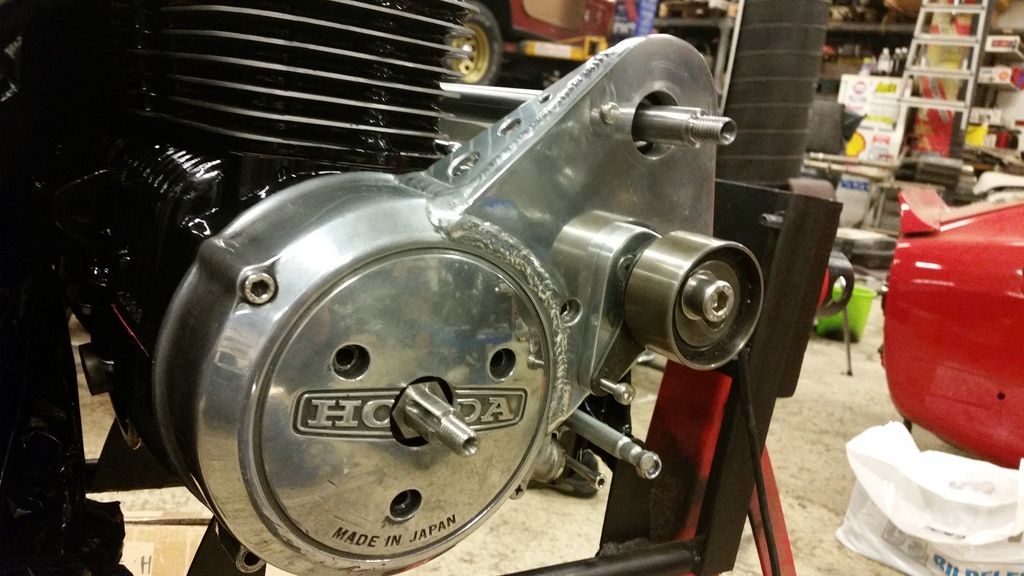

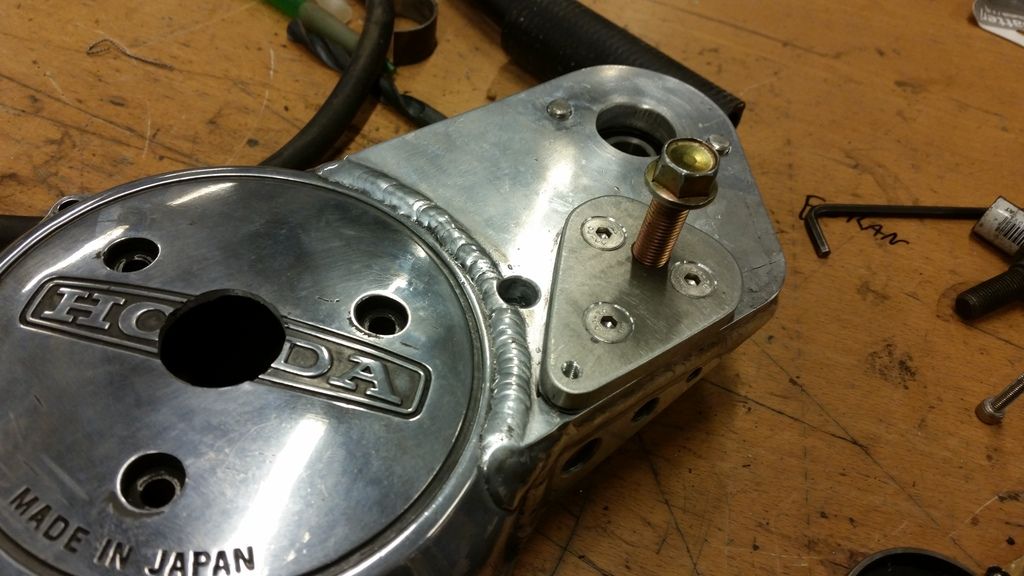

bracket for the idler pulley. Had to space it out a bit to match the belts.

the blank pulley is a timing belt pulley adjuster from a mazda miata.

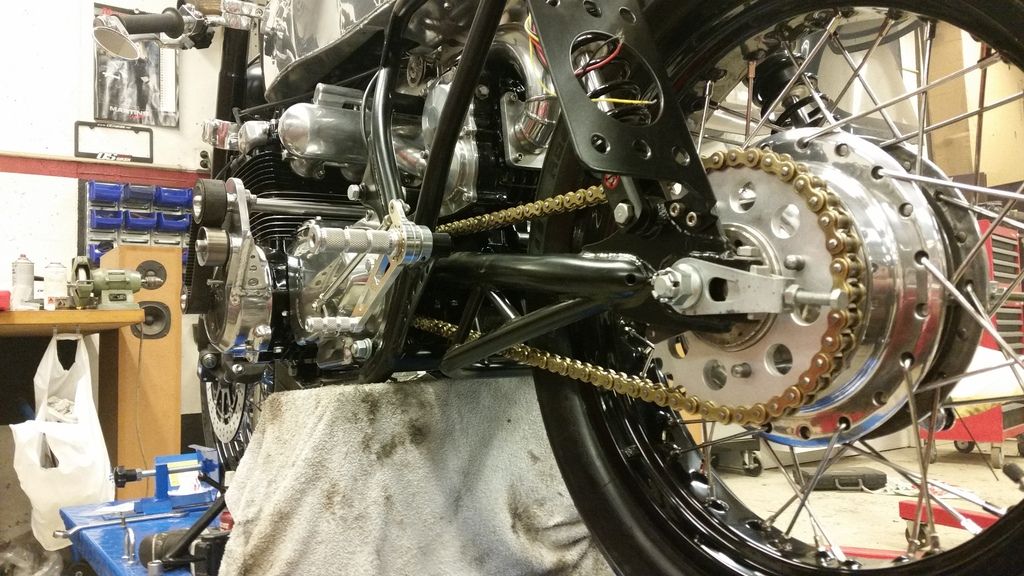

about as compact of a drive system as i was able to make while making sure it was plenty strong.

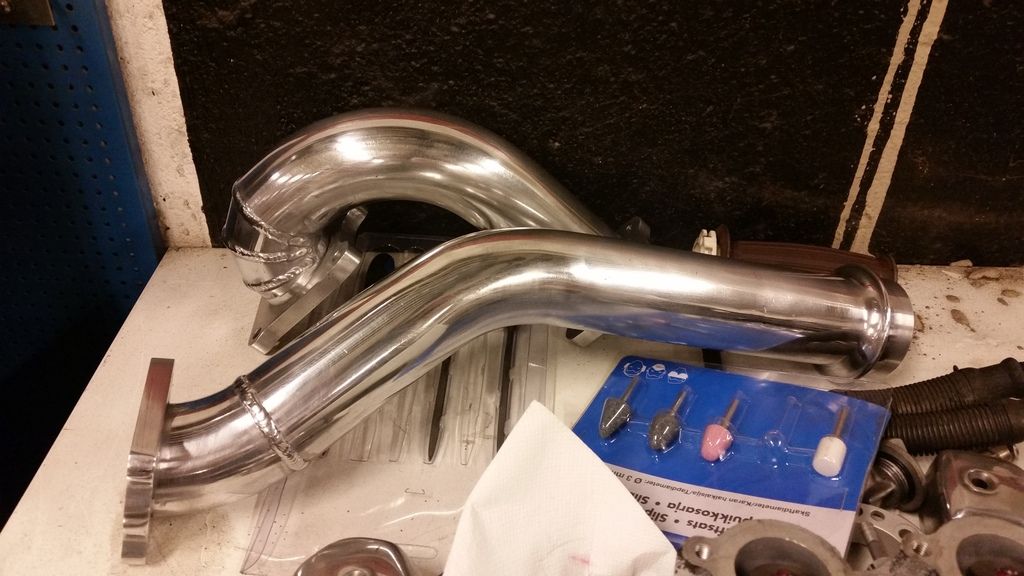

Intake tubes from air filter, and throttle body going to the supercharger.

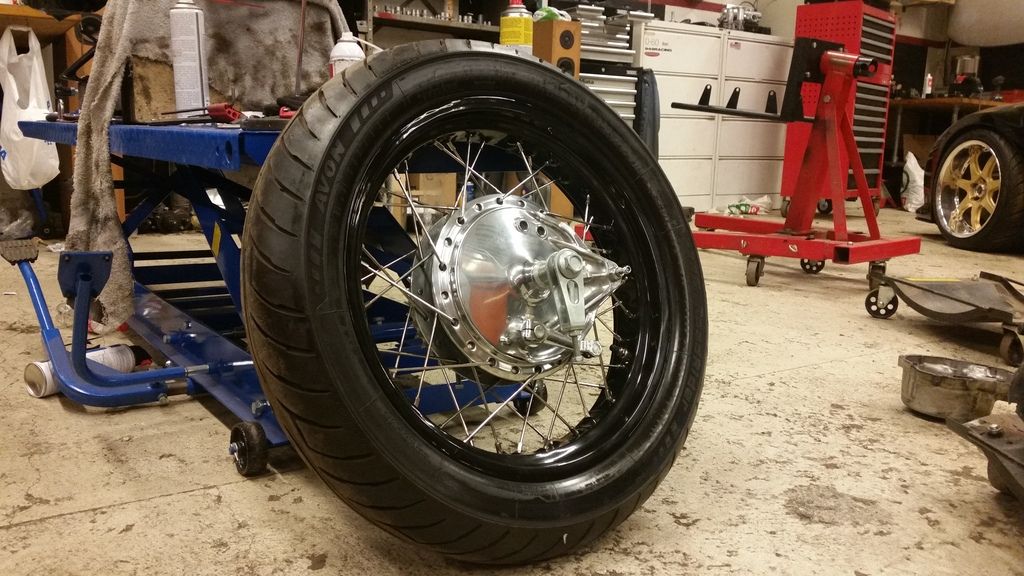

Rear wheel just waiting to be installed once the supercharger is in place.

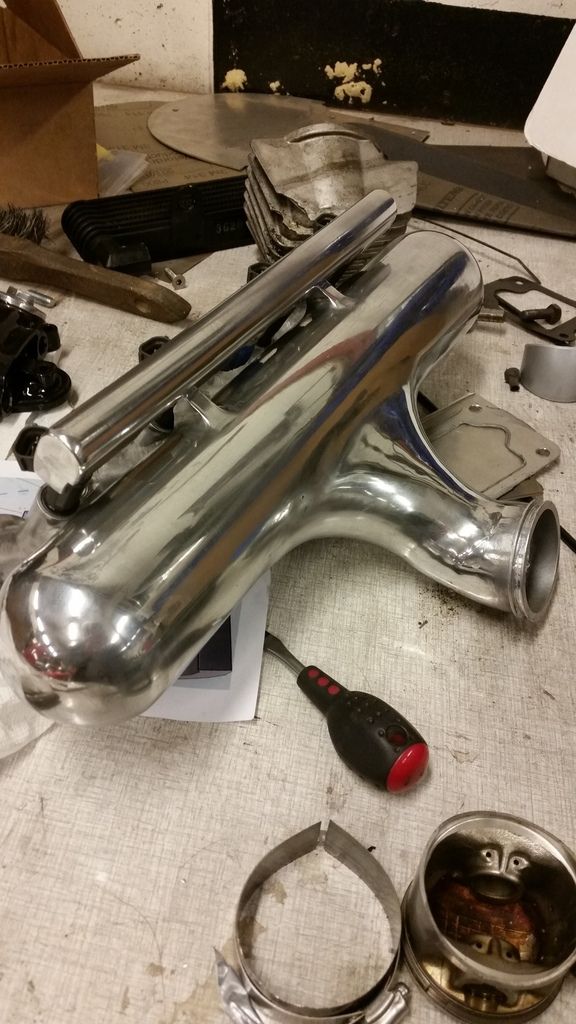

Finished the intake manifold, welded the brackets for the fuel rail, smoothed everything out and polished it.

In the process of finishing the mechanical bits of the bike as is due to exhibited next week at the bi annual bike trade fair in norway !

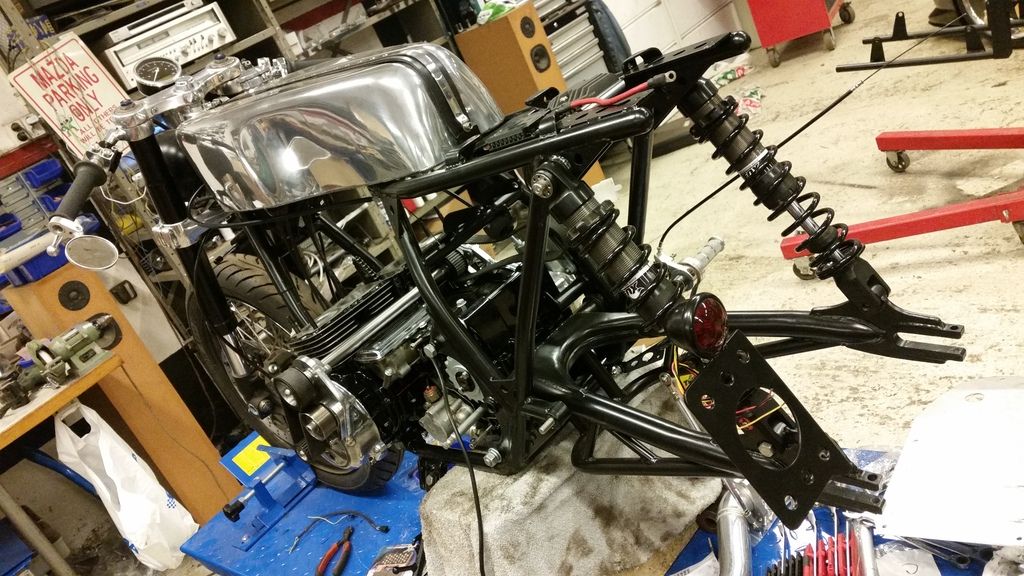

The seat is at the upholsterer and the remaining bits of the bike has been painted or polished

Really looking forward to seeing it complete, not just boxes of parts.

Kevin · « **Reply #79 on:** March 03, 2017, 05:19:49 PM »

Wow ! Amazing stuff! I'm excited to see it finished too!

Old Scrambler · « **Reply #80 on:** March 03, 2017, 05:37:07 PM »

Compact & Sanitary..........almost elegant

..........but with a purpose and a lurking growl

Harald F · « **Reply #81 on:** March 03, 2017, 05:47:36 PM »

thanks. i try to combine clean looks and performance, even if it does make every single part more time consuming to make

innovativems · « **Reply #82 on:** March 03, 2017, 05:58:29 PM »

Absolutely amazing work!

Sent from my iPhone using Tapatalk

754 · « **Reply #83 on:** March 03, 2017, 06:57:55 PM »

Very cool.. Well done..

Harald F · « **Reply #84 on:** March 06, 2017, 02:54:50 PM »

been working hard on the bike for a few days now..

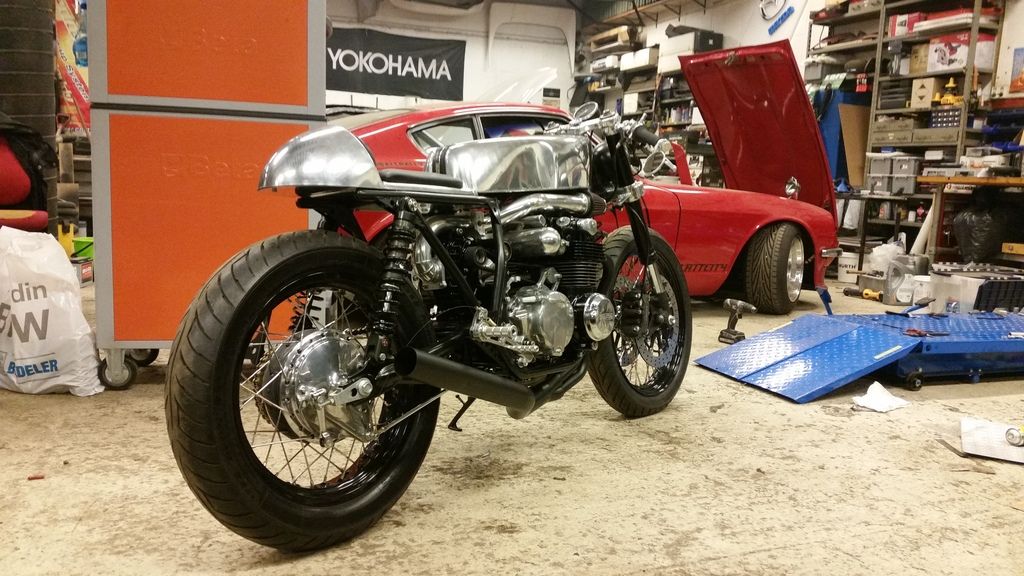

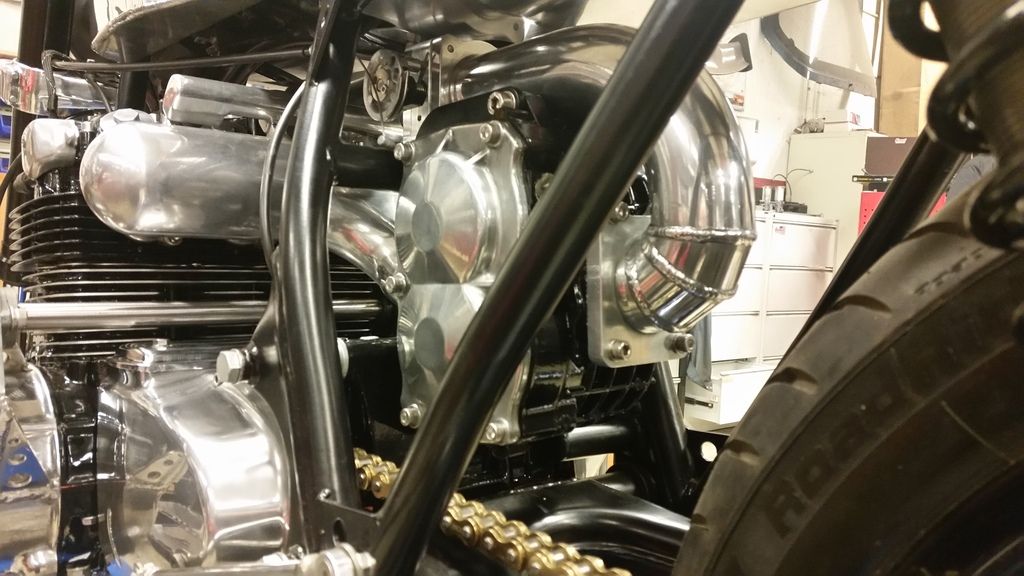

Supercharger finished and intake tube polished.

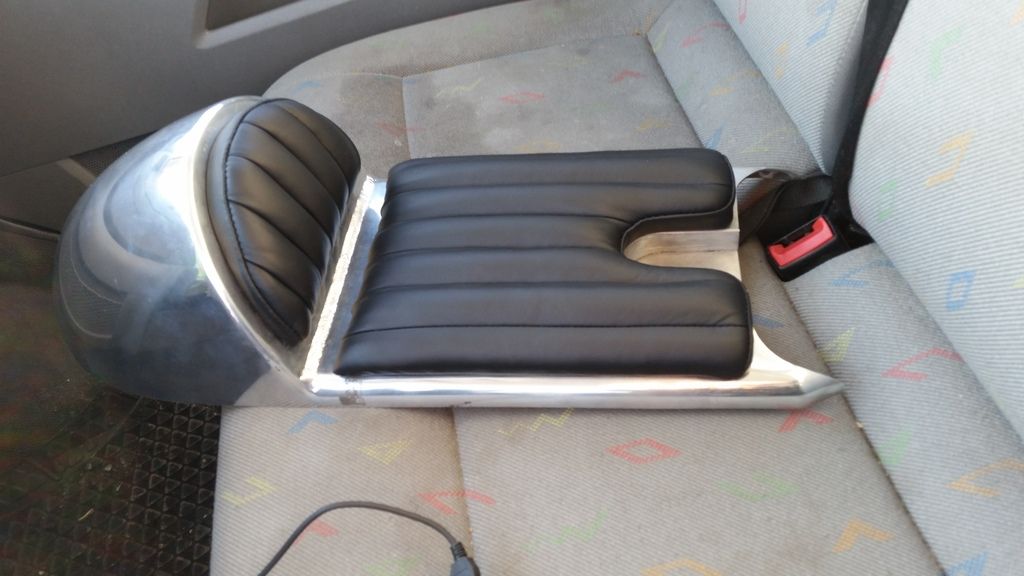

Seat finished.

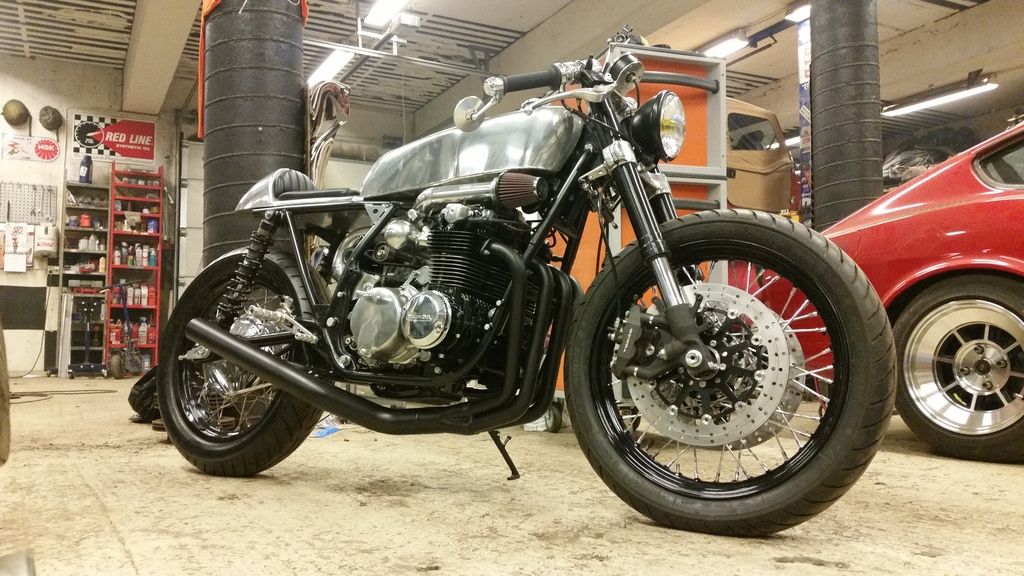

98% finished bike

Here i am, quite happy, testing out how it feels.. just need to finish the electrics now.. but this will do for the exhibition next weekend.

innovativems · « **Reply #85 on:** March 06, 2017, 03:46:05 PM »

Outstanding work all around. When will the beast live??

Sent from my iPhone using Tapatalk

cbornotcb · « **Reply #86 on:** March 06, 2017, 06:34:25 PM »

Well done Harald, well designed & pretty !
I was hoping to give my 250 a good flogging last week, but contaminated Methanol halted that plan, 500 miles from home in the outback wilderness

Tiny

RAFster122s · « **Reply #87 on:** March 06, 2017, 07:17:14 PM »

You certainly know how to work with aluminum and to achieve a nice polished surface. Your buddy can really lay down a nice TIG weld in the aluminum.
Very sanitary work that is quite compact.

The only thing that makes me cringe is the use of pods as they are not very good at filtering air...
The gauze filters are not known for their effectiveness despite the hype about them being so much more efficient and capable of adding X horsepower.
I am not a fan of them outside of a race track.

That is really a great design and super compact with some nice engineering behind it. Have fun at the show and best of luck with the coming wiring work. I look forward to your future info and picture shares on the project.
What kind of horse power do you hope or expect to see? What are you doing to upgrade the clutch to handle the added boost of power?

David

Harald F · « **Reply #88 on:** March 06, 2017, 11:15:12 PM »

i am aware of the filter, but i have very limited space, and no room for a air filter box with a oem element.
Also i have been running similar filters for 10+ years(not the same one for 10 years:) ) on my 400+ whp track and street miata, with no internal damages to either pistons, cylinders, or turbos. And i have had it apart to check for wear

The filter will work for now. Filter choice is just down to packaging, not looking for that last horsepower anyway

I have no idea of what horsepower level this will end up at.. between 75 and 100 maybe.

Clutch is upgraded, extra disc, and stronger springs. I will just have to see if it holds up.

Hopefully it will be finished with all details and ready to start withing a month or two.

Medyo Bastos · « **Reply #89 on:** March 07, 2017, 11:00:48 AM »

looks great

love that engine stand

Kevin · « **Reply #90 on:** March 07, 2017, 11:35:40 AM »

Man this thing is just ooozing with coolness!

Who built the seat and tank?

Awesome job!!!!

fastbroshi · « **Reply #91 on:** March 08, 2017, 07:28:37 PM »

I'm curious as to if you've ever done any trial and error testing with intakes on small supercharged motors like the one in the 550? I'm just wondering how efficient that design is, since looks and performance don't always match up and all.

Harald F · « **Reply #92 on:** March 09, 2017, 12:00:04 AM »

On this build i have not done much trail and error or advanced calculations. we normally do that for car engines, and tune intake lenghts , plenum volume etc to match the rev range, cams and turbo used.
The cb550 will be fast enough for its intended use and it is as much of a mechanical challenge for my self just to build something new (this is my first bike ever) as it is a all out performance build.

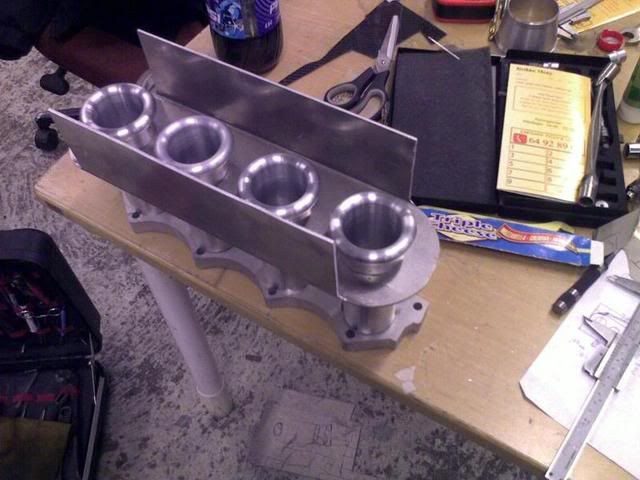

Picture of the intake made for one of my cars. this one is actually designed for this engine
