Author Topic: 1976 CB550F stator cover -- use anything more than the push fixes?  (Read 603 times)

0 Members and 1 Guest are viewing this topic.

Offline carnivorous chicken

  • Master
  • *****
  • Posts: 1,838
About to mount a stator cover on the 550F. I have a repro cover and have bought the oem "push fixes" that the pins mount into. dumb question maybe, but will these hold sufficiently? Anyone use anything else to make sure they stay put?

Obvious issues: heat making glue not hold, removing the cover down the road... but I'm also not interested in watching this $100 cover drop off and roll down the road...

Offline bryanj

  • Really Old Timer ...
  • *******
  • Posts: 13,968
  • CB500 Number 1000036
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #1 on: July 26, 2024, 09:44:57 AM »
I thought the F didnt have the loose emblem but the name cast in
Semi Geriatric ex-Honda mechanic and MOT tester (UK version of annual inspection). Garage full of "projects" mostly 500/4 from pre 73 (no road tax in UK).

Remember "Its always in the last place you look" COURSE IT IS YOU STOP LOOKIN THEN!

Offline bryanj

  • Really Old Timer ...
  • *******
  • Posts: 13,968
  • CB500 Number 1000036
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #2 on: July 26, 2024, 10:14:05 AM »
Just checked F1 has seperate emblem F2 had name in cover.
The seperate emblem started with 500 and went all the way through till the name in cover, yes occasionaly they fell off but usually only after people tried to use a mix of new and used, bent, bits
Semi Geriatric ex-Honda mechanic and MOT tester (UK version of annual inspection). Garage full of "projects" mostly 500/4 from pre 73 (no road tax in UK).

Remember "Its always in the last place you look" COURSE IT IS YOU STOP LOOKIN THEN!

Offline Oddjob

  • Hot Shot
  • ***
  • Posts: 463
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #3 on: July 26, 2024, 01:24:37 PM »
It the clips rust until they no longer grip and then you loose the cover.

You could cut a really thin slot in the ends of the pins, fit and then spread the slot slightly from the inside, you can see and get to the pins from the inside.

Offline carnivorous chicken

  • Master
  • *****
  • Posts: 1,838
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #4 on: July 26, 2024, 02:12:41 PM »
Seems like some work -- I don't want to take off the whole stator cover and I'd be worried about splitting the pins since they're too small...

Maybe just a dab of epoxy?

Offline Oddjob

  • Hot Shot
  • ***
  • Posts: 463
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #5 on: July 26, 2024, 02:57:24 PM »
The problem with glue is if you ever want to remove the cover in the future. Say if the field coil burnt out or the screws came loose.

If that happens the only way you’ll get it off without bending or damaging it is to knock the pins through from the inside a little at a time.

Offline CycleRanger

  • No comment about being an
  • Really Old Timer ...
  • *******
  • Posts: 5,416
  • Central Texas Shop Manual Advocate
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #6 on: July 26, 2024, 03:19:12 PM »
Seems like some work -- I don't want to take off the whole stator cover and I'd be worried about splitting the pins since they're too small...

Maybe just a dab of epoxy?

Maybe some Blue Loctite.
Do you have a copy of the Honda Shop Manual or Parts List for your bike? Get one here:
https://www.honda4fun.com/materiale/documentazione-tecnica
CB750K5        '79 XL250s     CL350K3
CB750K3        '76 XS650      '76 CJ360T

Offline carnivorous chicken

  • Master
  • *****
  • Posts: 1,838
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #7 on: July 26, 2024, 03:38:37 PM »
I actually took the push fixes out of the package and had a look, put them on the cover, and noticed they've got a little bit that protrudes that should lock it in there pretty tight. Forgive me for doubting Honda's engineers. a couple raps with a rubber mallet with a piece of cloth over it, and that thing is tighter than a... well, it's in there pretty good. I'll keep my eyes on it and if it starts to look like it's coming loose I can always take it off and put some adhesive in there. Seems like I was overthinking it -- although the original cover did come off at some point and there was a little evidence of epoxy on there...

Anyway, thanks all for chiming in.

Offline extrafunky

  • Full Member
  • *
  • Posts: 27
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #8 on: July 26, 2024, 05:49:54 PM »
Mine never fell off even with only two good pins but I had to put a dab of glue when I can no longer stand the rattling.

I used rubber glue. I think it was E6000 or something similar I had laying around that I'd used for repairing speaker foam surrounds. The glue stretches so the cover can still be taken off when needed.

Offline HondaMan

  • Someone took this pic of me before I became a
  • Really Old Timer ...
  • *******
  • Posts: 13,791
  • ...not my choice, I was nicknamed...
    • Getting 'em Back on the Road
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #9 on: July 26, 2024, 06:58:59 PM »
Does anyone else remember the famous 1st ride review of the CB500 SOHC4 by Cycle Magazine?
The "HONDA" cover fell of the alternator cover, and they showed it...
See SOHC4shop@gmail.com for info about the gadgets I make for these bikes.

The demons are repulsed when a man does good. Use that.
Blood is thicker than water, but motor oil is thicker yet...so, don't mess with my SOHC4, or I might have to hurt you.
Hondaman's creed: "Bikers are family. Treat them accordingly."

Link to Hondaman Ignition: http://forums.sohc4.net/index.php?topic=67543.0

Link to My CB750 Book: https://www.lulu.com/search?adult_audience_rating=00&page=1&pageSize=10&q=my+cb750+book

Link to website: www.SOHC4shop.com

Offline carnivorous chicken

  • Master
  • *****
  • Posts: 1,838
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #10 on: July 26, 2024, 07:09:16 PM »
Does anyone else remember the famous 1st ride review of the CB500 SOHC4 by Cycle Magazine?
The "HONDA" cover fell of the alternator cover, and they showed it...

When I decided to just tap it in as is, I was thinking "There's no way the Honda guys who F this up because it's the name of the company right on the side..."

Offline BrianK

  • Full Member
  • *
  • Posts: 3
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #11 on: August 06, 2024, 12:37:30 PM »
Since this is pretty current, I thought I would ask . . .

Re 1975 CB550F.  The Honda emblem on my stator cover is rashed up, and I would like to replace it.

Do you have to remove the stator cover to do this?   Can someone who has done this before please give me a thumbnail of the on and off procedure?

Thanks!

Offline carnivorous chicken

  • Master
  • *****
  • Posts: 1,838
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #12 on: August 06, 2024, 01:24:31 PM »
Nope. According to the parts fiche it's the same as the 1976. The cover has three pins that are pressed into three holes that have the "push fixes" in them. To take it off, you've got to get behind it and pry it. IF it's damaged and you're replacing and don't care, you should be able to rip it off without much care. I imagine you'd have to be careful if you were trying to keep it intact.

I got my replacement from CMS in the Netherlands. But make sure you get new push fixes as well, still available from Honda I think (I got mine from DSS).

Here's the diagram to have a look:

https://www.cmsnl.com/honda-cb550f-super-sport-550-four-1975-cb550fk0-usa_model469/partslist/E++08.html

Offline Oddjob

  • Hot Shot
  • ***
  • Posts: 463
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #13 on: August 06, 2024, 02:54:59 PM »
Brian you could try and repair the existing badge. I have mirror polished my rotor cover, to fit an unpolished rotor cover badge would I thought look out of place. Rather stupidly I sold my old rotor badge as it has a very small mark on it and bought a brand new one instead. Only after I sold it did I think of the clash of colours etc so I found a damaged rotor badge and thought I'd see how good I could make that, as an experiment if nothing else.

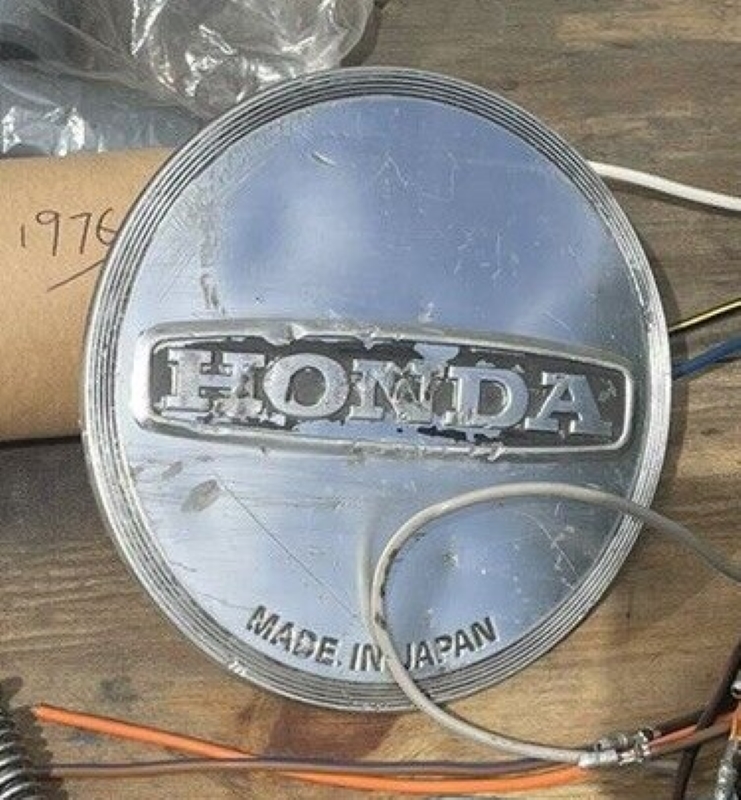

I started with this

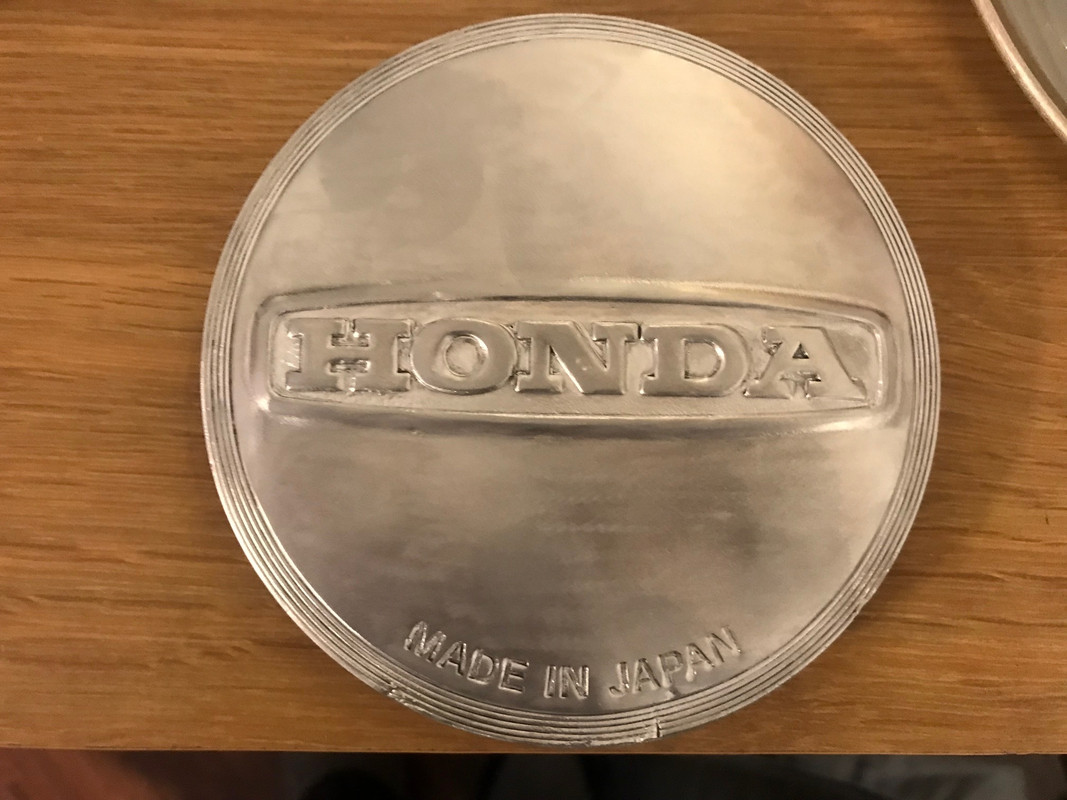

As you can see it's pretty damaged, large dent near the made in japan section and some road rash as well. It's usable if your not concerned with how it looks.

After trying a little panel beating, I bought a leather bag filled with lead beads to do that on and cleaning up the road rash it looked like this.

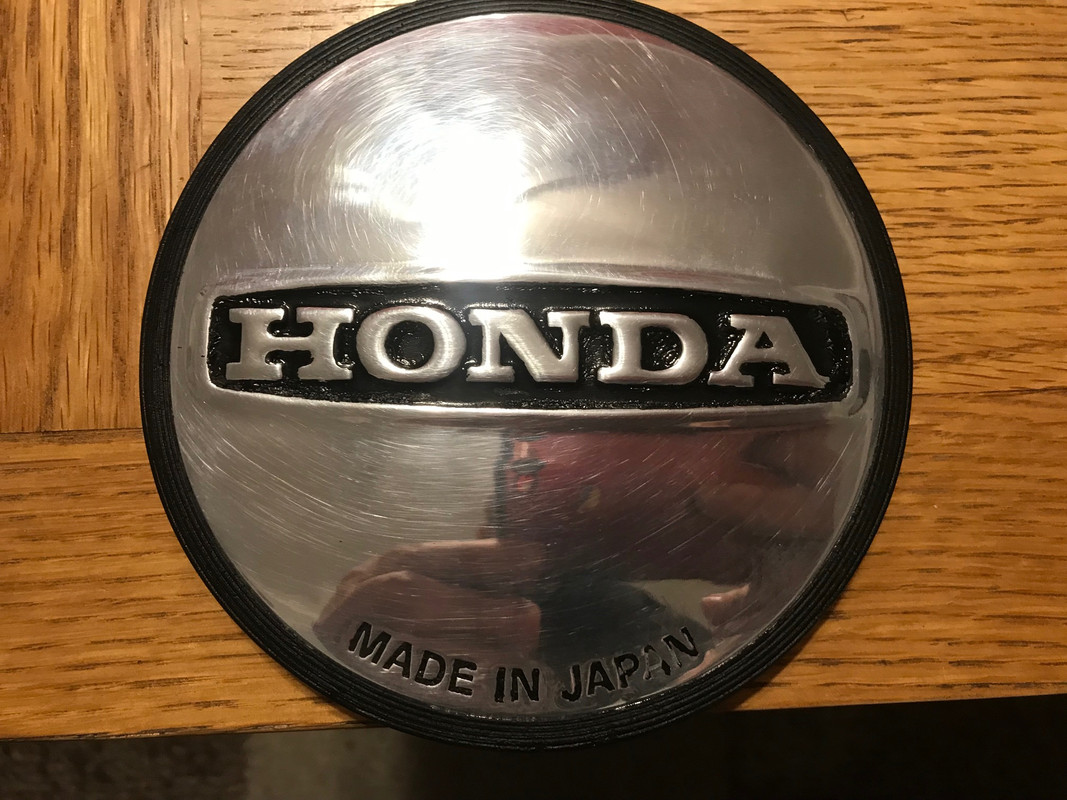

Now all I had to do was polish it and fill in the missing black paint, I decided to go a little further than Honda originally did TBH but that's just a personal preference of mine. I smudged the paint at the bottom a little and hadn't fixed it by the time I'd taken the pic, just needs a little filling in with more paint. Now it looks like this.



I probably won't fit it to my bike, it was just to see if I could do it and also to see the best way to do the new one if I decide to go that way.

As for removal, if you try and remove the cover on the bike you almost certainly bend the cover, as CC says, not a problem IF your replacing it anyway but the best way is to remove the rotor cover and you'll see the ends of the 3 pegs which hold it in place inside the cover, just tap them out a little at a time, do one peg a little, then another and then the last and so on. Hitting one peg all the way out can break the peg and distort the cover. Doing it this way also makes it easy to remove the clips if they stay inside the holes, which they often do.

Offline carnivorous chicken

  • Master
  • *****
  • Posts: 1,838
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #14 on: August 06, 2024, 04:12:10 PM »
Wow, that is some really nice work!

Offline BrianK

  • Full Member
  • *
  • Posts: 3
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #15 on: August 08, 2024, 02:18:21 PM »
I agree with Carnivorous.  That is really nice work.  I lack that kind of talent, so decided to buy a new emblem plate from CMSNL since they still are available.

Thank you for the warning about mangling it in the removal.  I try to save every part, so good to know that this may be a goner no matter what.

One more question for Oddjob.  It sounds like you are recommending removing the entire stator cover and removing the old emblem plate by tapping it out from behind.  Correct?

Thanks.

Offline Oddjob

  • Hot Shot
  • ***
  • Posts: 463
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #16 on: August 08, 2024, 02:22:48 PM »
Yes, correct.

Online Deltarider

  • Really Old Timer ...
  • *******
  • Posts: 8,119
  • ... but some animals are more equal than others.
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #17 on: August 12, 2024, 12:20:12 AM »
Mine (CB500) fell off. I never have had it of myself, so vibes can cause this. If any of you has a spare used one, for a reasonable price, please, let me know. Some marks is not an objection.
CB500K2-ED Excel black
"There is enough for everyone's need but not enough for anybody's greed."

Offline BrianK

  • Full Member
  • *
  • Posts: 3
Re: 1976 CB550F stator cover -- use anything more than the push fixes?
« Reply #18 on: August 24, 2024, 08:56:16 AM »
There is one up on eBay as of this morning (9/24/2024)
