Author Topic: question for those with stripes on thier cafe - pic request  (Read 1274 times)

0 Members and 1 Guest are viewing this topic.

Offline uwjberg

  • Enthusiast
  • **
  • Posts: 185
question for those with stripes on thier cafe - pic request
« on: February 10, 2009, 08:39:23 AM »
so i want to put some stripes/a stripe on my '75 750F. i'm torn between the look of one wider single stripe, and two narrower parallel stripes. does anyone have pics of either one for comparison? i was thinking something like a 3-4" single, or two 2".

i want to do it in black vinyl, but i seem to be having a hard time finding the wider tapes. seems like the single would be easier to get installed straight? anyone have any tips for installing them?
« Last Edit: February 10, 2009, 08:47:14 AM by uwjberg »
Logged

Offline SOHC4 Cafe Racer Fan

  • Speak up, Whipper-Snapper! I'm a
  • Really Old Timer ...
  • *******
  • Posts: 15,556
  • SOHC/4 Member #1235
Re: question for those with stripes on thier cafe - pis request
« Reply #1 on: February 10, 2009, 08:51:39 AM »
Not mine, but here are a few samples from Carpy's bikes.  Carpy's a pretty helpful guy, so if you call him, he can probably give you some advice once you've figured out your stripe scheme.

Broad racing/rally stripes:
http://www.cb750cafe.com/bikes.php?cat=1&id=49
http://www.cb750cafe.com/bikes.php?cat=1&id=45
http://www.cb750cafe.com/bikes.php?cat=1&id=63
http://www.cb750cafe.com/bikes.php?cat=1&id=25

Three stripes:
http://www.cb750cafe.com/bikes.php?cat=1&id=41
http://www.cb750cafe.com/bikes.php?cat=1&id=35
http://www.cb750cafe.com/bikes.php?cat=1&id=9
« Last Edit: February 10, 2009, 08:53:28 AM by CB750 Cafe Racer Fan »
Logged
1975 CB550K1 "Blue" Stockish Restomod (http://forums.sohc4.net/index.php?topic=135005.0)
1975 CB550F1 frame/CB650 engine hybrid "The Hot Mess" (http://forums.sohc4.net/index.php/topic,150220.0.html)
2008 Triumph Thruxton (http://forums.sohc4.net/index.php/topic,190956.0.html)
2014 MV Agusta Brutale Dragster 800
2015 Yamaha FZ-09 (http://forums.sohc4.net/index.php/topic,186861.0.html)

"There are some things nobody needs in this world, and a bright-red, hunch-back, warp-speed 900cc cafe racer is one of them — but I want one anyway, and on some days I actually believe I need one.... Being shot out of a cannon will always be better than being squeezed out of a tube. That is why God made fast motorcycles, Bubba." Hunter S. Thompson, Song of the Sausage Creature, Cycle World, March 1995.  (http://www.latexnet.org/~csmith/sausage.html and https://magazine.cycleworld.com/article/1995/3/1/song-of-the-sausage-creature)

Sold/Emeritus
1973 CB750K2 "Bionic Mongrel" (http://forums.sohc4.net/index.php?topic=132734.0) - Sold
1977 CB750K7 "Nine Lives" Restomod (http://forums.sohc4.net/index.php?topic=50490.0) - Sold
2005 RVT1000RR RC51-SP2 "El Diablo" - Sold
2016+ Triumph Thruxton 1200 R (http://forums.sohc4.net/index.php/topic,170198.0.html) - Sold

Offline aussie

  • Enthusiast
  • **
  • Posts: 163
Re: question for those with stripes on thier cafe - pic request
« Reply #2 on: February 28, 2009, 09:02:42 PM »
heres my stripes ;D
Logged

Offline Burnboy

  • Hot Shot
  • ***
  • Posts: 458
Re: question for those with stripes on thier cafe - pic request
« Reply #3 on: March 01, 2009, 12:54:58 AM »
heres a pic of min, about an inch and a quaarter with a 3/4'' seperation
Logged
1975 CB750
1973 CB350F

Offline cafe2be

  • Hot Shot
  • ***
  • Posts: 564
Re: question for those with stripes on thier cafe - pic request
« Reply #4 on: March 01, 2009, 08:09:36 AM »
here is mine, solid stripe. Gold leaf
Logged

Offline greenjeans

  • Industrial strengthed dreamer.
  • Old Timer
  • ******
  • Posts: 2,961
  • 1972 CB750K2
Re: question for those with stripes on thier cafe - pic request
« Reply #5 on: March 01, 2009, 09:12:22 AM »
get some masking tape and put it on your tank etc until you like the look...
Then  measure it (width length etc) and stop by a local sign shop.   They can cut them to size for you.
Get a good 2mil "cast" vinyl  they conform better to shapes and will have better long term durability

These are vinyl stripes... At 4ft they look like paint

« Last Edit: March 01, 2009, 09:15:09 AM by greenjeans »
Logged
Yep, I'm the kid that figured out how to put things back together...eventually.

Offline BIKE

  • Enthusiast
  • **
  • Posts: 211
Re: question for those with stripes on thier cafe - pic request
« Reply #6 on: March 01, 2009, 10:14:37 AM »
Quote from: cafe2be on March 01, 2009, 08:09:36 AM
here is mine, solid stripe. Gold leaf


Hey vwchef2  ;)
Logged
1975 CB750 K5
1977 CB750A

Offline Bodain

  • Hot Shot
  • ***
  • Posts: 532
  • I love the smell of fresh asphalt in the morning!
Re: question for those with stripes on thier cafe - pic request
« Reply #7 on: March 01, 2009, 10:29:03 AM »

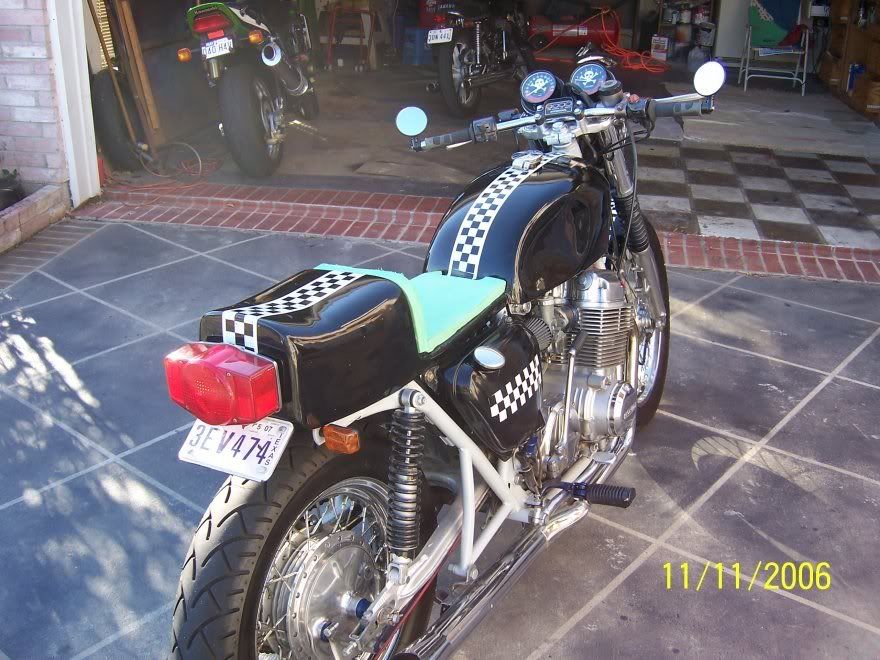

How about some checkers.  It's not a decal in this case. It's all paint...

Logged
2009 Suzuki TU250
2014 Honda Grom
1988 Yamaha FZ600
2018 Honda Ruckus
1971 Honda CB500

devbear12

  • Guest
Re: question for those with stripes on thier cafe - pic request
« Reply #8 on: March 02, 2009, 08:36:34 PM »
stripes and checkers, cant see but checkers on left side follow the bottom of the tank and seat.

Alribht how do i get my pictures file sizes low enough to put on here my pics are showing 450kb and i need 256.

arggghhhhh
« Last Edit: March 02, 2009, 08:49:57 PM by devbear12 »
Logged
