Author Topic: How I Make A Baffle (Read 17130 times)

Industrial Cafe · « **on:** September 23, 2009, 06:41:06 PM »

I would have written it out, but a video is more fun.
just watch, I speed up the boring parts.

Ricky_Racer · « **Reply #1 on:** September 23, 2009, 07:22:56 PM »

Very Cool video, Dude, and great how-to. Thanks!

But WTF kind of TV do you guys watch in Florida? Yeouch!!!

RR

Industrial Cafe · « **Reply #2 on:** September 23, 2009, 08:18:20 PM »

Quote from: Ricky_Racer on September 23, 2009, 07:22:56 PM

Very Cool video, Dude, and great how-to. Thanks!

But WTF kind of TV do you guys watch in Florida? Yeouch!!! RR

haha! you heard the tv?
I have no idea what was on, it's mirrored to the tv in the living room and my wife was watching some dumb crap.

coldright · « **Reply #3 on:** September 23, 2009, 08:57:30 PM »

Very cool, esp. the sped up parts. Thanks for the vid.

Pinhead · « **Reply #4 on:** September 24, 2009, 01:21:24 AM »

Would you be willing to make a few of those for a price?

mystic_1 · « **Reply #5 on:** September 24, 2009, 05:28:28 AM »

Just curious, why not use a drill bit to make the holes? Seems to me that'd save you some time.

mystic_1

Industrial Cafe · « **Reply #6 on:** September 24, 2009, 08:41:15 AM »

Quote from: mystic_1 on September 24, 2009, 05:28:28 AM

Just curious, why not use a drill bit to make the holes? Seems to me that'd save you some time.

mystic_1

because then I'd have to mark out all the drilling points, this way I can offset the holes evenly just by touching the edge of the screws together when they're all the way down.

also, those self tappers are sharp every time, a drill bit dulls after about 200 holes.

Industrial Cafe · « **Reply #7 on:** September 24, 2009, 08:49:07 AM »

Quote from: Pinhead on September 24, 2009, 01:21:24 AM

Would you be willing to make a few of those for a price?

yes

Industrial Cafe · « **Reply #8 on:** September 24, 2009, 09:39:18 AM »

the baffle i made is loud and low. I've noticed, the longer the pipe the higher the pitch. but if I wrap it in fiberglass it dumbs down (glasspack)

Pinhead · « **Reply #9 on:** September 25, 2009, 01:51:14 PM »

How long is the one in the video? What's the ID/OD of the pipe you're using?

Industrial Cafe · « **Reply #10 on:** September 25, 2009, 02:49:42 PM »

Quote from: Pinhead on September 25, 2009, 01:51:14 PM

How long is the one in the video? What's the ID/OD of the pipe you're using?

It cram-fits into a 2 1/4 inch pipe, and it's 6 inches long.

i made a ride-around video to see what it sounded like under acceleration.
I'll post it when it's done.

Industrial Cafe · « **Reply #11 on:** September 25, 2009, 03:09:48 PM »

$25 shipped

Industrial Cafe · « **Reply #12 on:** September 25, 2009, 07:31:47 PM »

hey pinhead, is that too much?

I wanted to see what it sounded like under acceleration.

Peters1983 · « **Reply #13 on:** September 25, 2009, 11:32:53 PM »

That sounds awesome, what exhaust are you running? Any thoughts on fitting something like that to a 4-2 setup?

Pinhead · « **Reply #14 on:** September 26, 2009, 01:57:43 AM »

That's not a bad price for what's basically a custom sized and built muffler. Could you get some closer/more detailed pics of the flares and also show exactly how it fits into the 2.25" pipe? And then how is the end product attached to the header/pipes?

Industrial Cafe · « **Reply #15 on:** September 26, 2009, 09:44:22 AM »

Quote from: Peters1983 on September 25, 2009, 11:32:53 PM

That sounds awesome, what exhaust are you running?

it's a yoshi header 4-1 with a cut down tail pipe.

Quote

Any thoughts on fitting something like that to a 4-2 setup?

yeah... make two of them.

kidding, pm me with your inside measurements to the hundredth. like (2.25)
I can't make them for megaphones unless I make them out of a flat sheet and roll em up.
too complicated to get right without the pipe in hand.
so I just don't do cones.

magista · « **Reply #16 on:** September 26, 2009, 10:06:52 AM »

Nice work. Much more technical than our approach.

A few of us Duc boys took a low-tech approach and used sink strainers in repacked Emgos. They actually work and sound great:

Industrial Cafe · « **Reply #17 on:** September 26, 2009, 10:42:33 AM »

Quote from: Pinhead on September 26, 2009, 01:57:43 AM

That's not a bad price for what's basically a custom sized and built muffler. Could you get some closer/more detailed pics of the flares and also show exactly how it fits into the 2.25" pipe? And then how is the end product attached to the header/pipes?

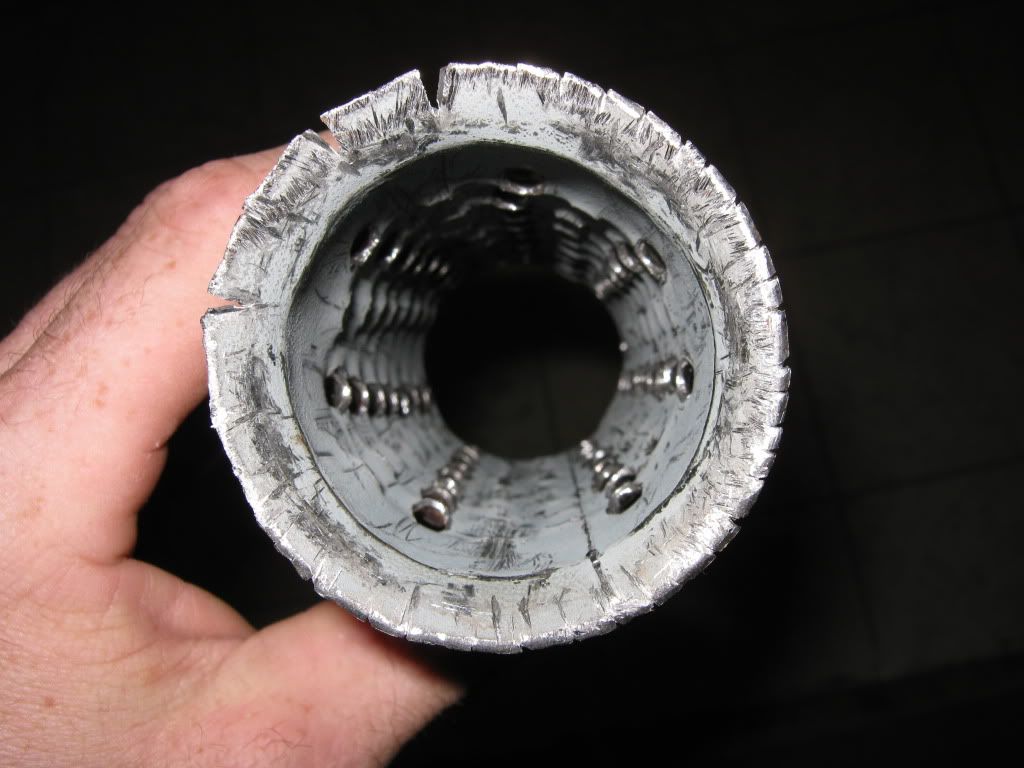

I cut my exhaust with a pipe cutter, so it tapers in a bit then I cut the baffle down the center so it'll roll in. it just stays there.
the one in the picture is the first one I ever did. it is cracked, cause I didn't heat it first and I tried to bend it too fast.

I use a bolt to go thru a clip nut.

just to remind you , this is not a quiet baffle, it just makes it sound bad ass.

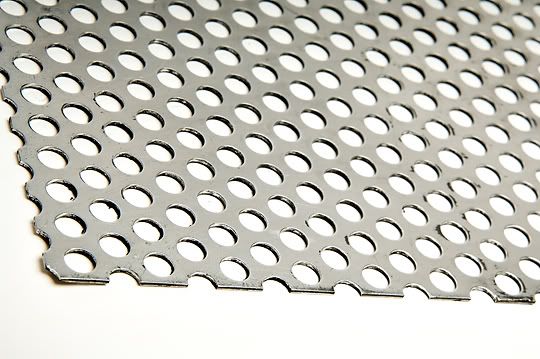

I found some perforated sheet metal at the hardware store. I'll use it to make the next one.

Pinhead · « **Reply #18 on:** September 26, 2009, 11:01:21 AM »

Quote from: Industrial Cafe on September 26, 2009, 10:42:33 AM

just to remind you , this is not a quiet baffle, it just makes it sound bad ass.

It's got to be a little quieter than the straight pipes I'm running.

I like the sound of my 650 with straight pipes but the straight-ed CM400T sounds like a damn Civic with a fart can. $:-\$ I'm hoping some type of baffle/muffler will change the sound. Though I may go with a pair of these...

Pinhead · « **Reply #19 on:** September 26, 2009, 08:42:11 PM »

That perforated sheet looks like it'd make the process 100x easier. Now if I only had a damn welder!

Industrial Cafe · « **Reply #20 on:** September 26, 2009, 09:31:33 PM »

i don't have a welder.

Pinhead · « **Reply #21 on:** September 26, 2009, 09:45:18 PM »

I think I'm still missing how everything is tied together...

stealthy · « **Reply #22 on:** September 27, 2009, 12:49:13 AM »

I think I'm missing something because I dont understand how you make the baffle out of 2 1/4" pipe and make it fit in 2 1/4" pipe....?

I'm sleep deprived.

mystic_1 · « **Reply #23 on:** September 27, 2009, 06:28:26 AM »

Sounds to be like he cuts the baffle pipe down the longitudinal axis and then overlaps the cut ends.

mystic_1

Industrial Cafe · « **Reply #24 on:** September 27, 2009, 06:51:45 AM »

I cut the gray piece in the video out of 2 inch pipe and and flared the end to 2 1/4

but mystic has it exactly- on how I've done some of them. the spring effect holds it in well that way. there is alot of trimming involved when you do the split, roll, spring, deal.
