Author Topic: 77F rear caliper has me hot (with pictures)SOLVED I think  (Read 1806 times)

0 Members and 1 Guest are viewing this topic.

Offline stever

  • Cafe almost back! I've got a
  • Full Member
  • *
  • Posts: 83
77F rear caliper has me hot (with pictures)SOLVED I think
« on: May 30, 2011, 03:00:19 PM »
OK I'm going bananas here. Trying to reassemble my caliper that was sold to me as a 77F rear caliper and the dam thing just won't go. I've been wrestling with this thing for 2 days. Heres the problem:

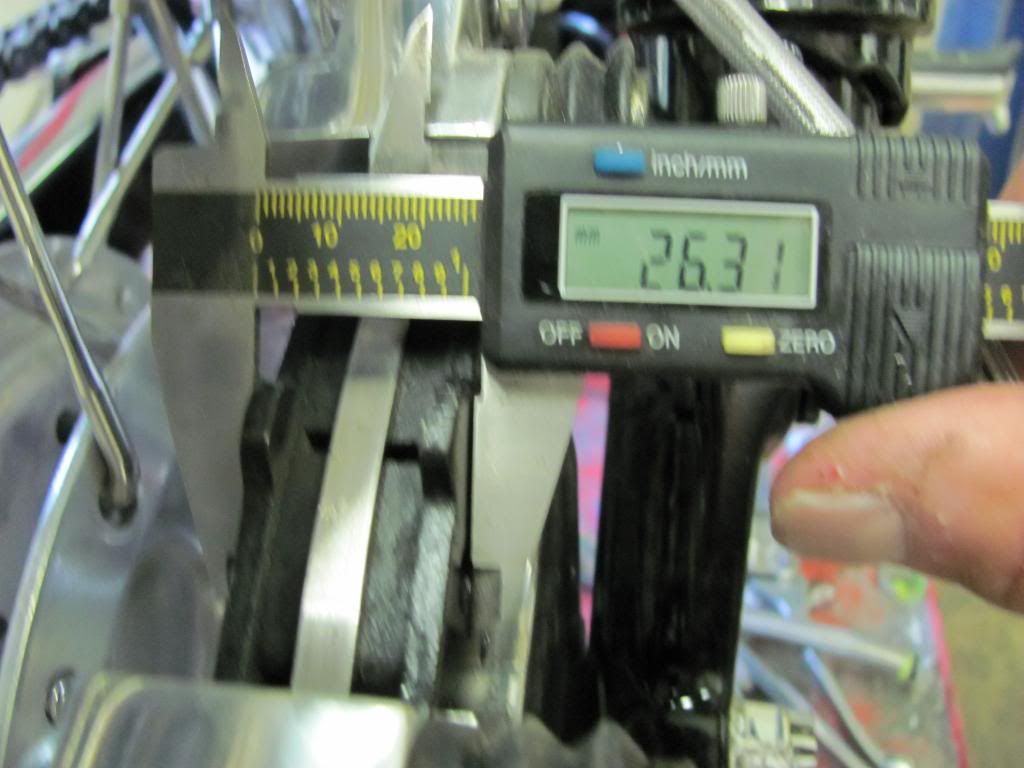

As you can see the stack of pads and disc are wider by about 3 mm than the distance between the end of the piston and the arms of the caliper.  The diameter of the piston is 38mm (the 77 diameter) and is fully retracted into the bore, a 77 F rebuild kit fits fine , and 77F pads fit nicely.  What the heck am I missing here?
« Last Edit: May 31, 2011, 09:43:01 AM by stever »
Logged
If you don't have anything good to say about something..... come sit next to me

Offline madmtnmotors

  • When did I get to be a
  • Really Old Timer ...
  • *******
  • Posts: 6,154
  • Sunny Central Florida
Re: 77F rear caliper has me hot (with pictures)
« Reply #1 on: May 30, 2011, 03:53:54 PM »
400F?
550F?
750F?

Did you remove the piston and verify that the piston seal did not get pushed in behind the piston?
« Last Edit: May 30, 2011, 03:56:52 PM by madmtnmotors »
Logged
TAMTF...


Wilbur



Projects:
"Evolution": http://forums.sohc4.net/index.php?topic=100352.0
"P.O. Debacle": http://forums.sohc4.net/index.php/topic,126692.msg1441661.html#msg1441661
F2/F3 O-rings: http://forums.sohc4.net/index.php?topic=113672.msg1300721#msg1300721
Cam Tower Studs: https://www.mcmaster.com/#93210a017/=t19sgp
Clean up that nasty harness: http://forums.sohc4.net/index.php?topic=137351.msg1549191#msg1549191
http://forums.sohc4.net/index.php/topic,148188.msg1688494.html#msg1688494
http://forums.sohc4.net/index.php/topic,139544.msg1579364.html#msg1579364

Charging system diagnosis: http://forums.sohc4.net/index.php?topic=1012.msg8345#msg8345
Get the manuals: http://manuals.sohc4.net/cb750k/
The Dragon: http://forums.sohc4.net/index.php?topic=45183.msg1571675#msg1571675
Headlight Switch: http://forums.sohc4.net/index.php?topic=113986.msg1283236#msg1283236
Branden's leak free top end thread: http://forums.sohc4.net/index.php?topic=107040.0
Engine Lifting Made Easy: http://forums.sohc4.net/index.php/topic,58210.msg1684742.html#msg1684742
                                      http://forums.sohc4.net/index.php/topic,100352.msg1675840.html#msg1675840
Static and Dynamic Timing: http://www.hondachopper.com/garage/carb_info/timing/timing1.html
Airbox Gasket Replacement: http://forums.sohc4.net/index.php/topic,114485.msg1290000.html#msg1290000
"Café" : http://forums.sohc4.net/index.php/topic,84697.msg953814.html#msg953814
PD Carb Choke Linkage: http://forums.sohc4.net/index.php/topic,100352.msg1669248.html#msg1669248
                                    http://forums.sohc4.net/index.php/topic,110931.msg1248354.html#msg1248354
                                    http://forums.sohc4.net/index.php/topic,48858.msg515204.html#msg515204
Follow up on your damn posts: http://forums.sohc4.net/index.php/topic,144305.msg1791605.html#msg1791605
Taiwanese Cam Chain Tensioners:  http://forums.sohc4.net/index.php/topic,155043.msg1774841.html#msg1774841
Gumtwo Seat Cover: http://forums.sohc4.net/index.php/topic,164440.msg1897366.html#msg1897366
Primary Drive: http://forums.sohc4.net/index.php/topic,166063.msg1919278.html#msg1919278
Tank Latch: http://forums.sohc4.net/index.php/topic,165975.msg1919495.html#msg1919495
Shorten your forks: http://vintage-and-classic-honda-s.456789.n3.nabble.com/How-to-shorten-forks-td4042465.html DO NOT CUT THE SPRINGS!
Clutch How To: http://vintage-and-classic-honda-s.456789.n3.nabble.com/How-to-change-and-adjust-a-clutch-SOHC-td4040391.html
Late model K7/K8/F2/F3 front sprocket cover removal: http://forums.sohc4.net/index.php/topic,178428.msg2072279.html#msg2072279
630 to 530 conversion: http://forums.sohc4.net/index.php/topic,180710.msg2094423.html#msg2094423

Sent from my Tandy TRS-80!

Offline SOHC4ever

  • Enthusiast
  • **
  • Posts: 189
Re: 77F rear caliper has me hot (with pictures)
« Reply #2 on: May 30, 2011, 03:59:13 PM »
Re you sure that the piston is fully retracted into the bore? It looks like it ought to go in a bit more. Maybe something got caught in there while you had it apart or the pieces just aren't happy?
Zen, zen.
Logged

Offline BeSeeingYou

  • Old Timer
  • ******
  • Posts: 3,913
Re: 77F rear caliper has me hot (with pictures)
« Reply #3 on: May 30, 2011, 04:38:06 PM »
Quote from: SOHC4ever on May 30, 2011, 03:59:13 PM
Re you sure that the piston is fully retracted into the bore? It looks like it ought to go in a bit more. Maybe something got caught in there while you had it apart or the pieces just aren't happy?
Zen, zen.

I think you may be right.  While I don't have that particular year of bike in my experience the piston should retract flush or close to it with the caliper.  Try a small c clamp to push the piston in.
« Last Edit: May 30, 2011, 04:39:50 PM by srust58 »
Logged

Offline burnoutking1971

  • Full Member
  • *
  • Posts: 57
Re: 77F rear caliper has me hot (with pictures)
« Reply #4 on: May 30, 2011, 04:52:52 PM »
I agree the piston looks like it is not all the way retracted. Did you use a new pistion or stainless steel aftermarket one? If so did you measure the piston lengh? Good luck the "C" clamp will work just be gentle and make sure your piston seal did not come disloged and is behind the piston. Can you post a pic of the set up just so I can have a look please?
Kind Regards
J
Logged
:)

Offline TwoTired

  • Really Old Timer ...
  • *******
  • Posts: 21,802
Re: 77F rear caliper has me hot (with pictures)
« Reply #5 on: May 30, 2011, 04:59:16 PM »
I thought the rear caliper piston was shorter than the earlier front caliper pistons.

I don't have one apart right now to measure.  Just fuzzy memory.  I know the older front calipers use 38 mm pistons.

If my line of thinking is correct, (Hey miracles do happen  ;) ) could someone have put an older front caliper piston in the rear caliper?

...Just armchair ramblings.

Cheers,
Logged
Lloyd... (SOHC4 #11 Original Mail List)
72 500, 74 550, 75 550K, 75 550F, 76 550F, 77 550F X2, 78 550K, 77 750F X2, 78 750F, 79CX500, 85 700SC, GL1100

Those that learn from history are doomed to repeat it by those that don't learn from history.

Offline Lamp

  • Enthusiast
  • **
  • Posts: 137
Re: 77F rear caliper has me hot (with pictures)
« Reply #6 on: May 30, 2011, 05:34:42 PM »
I just rebuilt a 78ish supersport rear caliper for my bike. If yours is like mine, that piston is going to go in very tight at first. Right now it's yours isn't in all the way. That's why you have such a small gap. Also be sure to lube it up so it doesn't grab on the seal too much. BTW how clean is that piston. From what sticking out it looks pretty dirty.
Logged
1972 CB750K, with lots of F-model parts... SOLD

Offline stever

  • Cafe almost back! I've got a
  • Full Member
  • *
  • Posts: 83
Re: 77F rear caliper has me hot (with pictures)
« Reply #7 on: May 30, 2011, 06:52:31 PM »
Its for a 750. I agree it looks wrong, but its all the way in the bore. I swear. The fiche shows same part number front and back, so no dice on that thought. Maybe someone could measure the length of a known 77-80 piston for me? Would be nice to sort this out. I guess if push comes to shove I'll just get another one and hope its right. Steve
Logged
If you don't have anything good to say about something..... come sit next to me

Offline stever

  • Cafe almost back! I've got a
  • Full Member
  • *
  • Posts: 83
Re: 77F rear caliper has me hot (with pictures)SOLVED I think
« Reply #8 on: May 31, 2011, 09:46:06 AM »
Problem solved (I think). I found this Ebay ad for a new piston they claim is 35mm long.
http://cgi.ebay.com/ebaymotors/Honda-CB750-F-CBX-CBX1000-Rear-Brake-Caliper-Piston-/380342627094?pt=Motorcycles_Parts_Accessories&hash=item588e2feb16
 The one I have is 41 mm long. I've ordered a new one, we will see if thats the problem. Ah, the joy of assembling disparate parts into a whole.
Logged
If you don't have anything good to say about something..... come sit next to me
