What is this and where does it go?
« on: July 05, 2013, 08:50:33 AM »
I am putting my engine back together today and I found this thing. It was with my piston heads, but I can't find it in the fiche or a place that makes sense. It seems to have a little wear on it rather than just being a dowel for mating. Any ideas?



Hope that image works. They changed picasa...
Logged

Offline mrrch

  • Hot Shot
  • ***
  • Posts: 652
Re: What is this and where does it go?
« Reply #1 on: July 05, 2013, 09:00:23 AM »
Post a side view, also how long is it?hollow?
Logged
my build

1977 CB750K WITH 1976 CB750F ENGINE

Offline fastbroshi

  • Puppet
  • Old Timer
  • ******
  • Posts: 2,643
Re: What is this and where does it go?
« Reply #2 on: July 05, 2013, 09:02:23 AM »
That looks like the oil control valve that goes in the end of the cylinder, there should be two of them.
Logged
Just call me Timmaaaaay!!!

Offline toytuff

  • "watching the pinheads"
  • Old Timer
  • ******
  • Posts: 4,349
Re: What is this and where does it go?
« Reply #3 on: July 05, 2013, 09:14:04 AM »
Looks like a sleeve that helps to hold a gasket.

tt
Logged

Offline Powderman

  • Master
  • *****
  • Posts: 2,462
    • Creative Candy Powder Coating
Re: What is this and where does it go?
« Reply #4 on: July 05, 2013, 09:24:40 AM »
Dowel pins for gasket and head locating are usually straight tubes and not profiled like that.
Logged

Offline goldarrow

  • one day, i'll be an
  • Old Timer
  • ******
  • Posts: 3,360
Re: What is this and where does it go?
« Reply #5 on: July 05, 2013, 09:37:04 AM »
Dowel for clutch cover?
Logged
Life Is Full Of Challenges - And My Backyard Is Full Of SOHC4's

CB550 K0
CB750 K0, K2, K23 JDM, K45, K5
And the little ones z50r, xr50r, st90


750k5 http://forums.sohc4.net/index.php?topic=114817.0

Offline stereosilence

  • Hot Shot
  • ***
  • Posts: 544
  • 1975 CB550K
Re: What is this and where does it go?
« Reply #6 on: July 05, 2013, 11:29:12 AM »
It is solid. It looks just like a dowel for the clutch cover. I am hoping it is a dowel for the engine cases. I just assembled the clutch onto the engine and realized I didn't include the starter sprocket.  ::) So, I'll take the cases back apart and see.
Logged

Offline brandEn

  • Old Timer
  • ******
  • Posts: 3,202
Re: What is this and where does it go?
« Reply #7 on: July 05, 2013, 11:48:49 AM »
If its solid it could be one of the three rollers of your starter clutch?
Logged

Offline xsmooth69x

  • Master
  • *****
  • Posts: 1,621
Re: What is this and where does it go?
« Reply #8 on: July 06, 2013, 10:27:40 AM »
Quote from: brandEn on July 05, 2013, 11:48:49 AM
If its solid it could be one of the three rollers of your starter clutch?

god damn it you beat me!! i never get to sound smart ever!  :P

Logged
1975 CB550 (FINISHED?!?!?)
first motorcycle ever!!! ow and i dont know how to ride it either :D

raw rust rice venti quad shot cafe racing latte project aka my build..... http://forums.sohc4.net/index.php?topic=88853.0

black and white equation godzilla chalkboard
1972 cb750 - next in line for some <3

Offline DJ_AX

  • Expert
  • ****
  • Posts: 1,279
  • ?!
Re: What is this and where does it go?
« Reply #9 on: July 06, 2013, 10:56:56 AM »
Quote from: xsmooth69x on July 06, 2013, 10:27:40 AM
Quote from: brandEn on July 05, 2013, 11:48:49 AM
If its solid it could be one of the three rollers of your starter clutch?

god damn it you beat me!! i never get to sound smart ever!  :P


ahhh ha ha ... :)

Logged
~ Vincent . . . '75 CB750 K5 . . . '97 BMW r1100rt . . . had; '75 CB550 K1 (sold) . . .  '73 CB350G (gifted) HELL YEAH!
Disclaimer: I could be wrong. :)

Offline stereosilence

  • Hot Shot
  • ***
  • Posts: 544
  • 1975 CB550K
Re: What is this and where does it go?
« Reply #10 on: July 07, 2013, 04:42:34 PM »
I don't think it is the starter clutch. I haven't disassembled the starter. It doesn't seem to be a case dowel either. Hopefully, it will be apparently as I get further into reassembly!
Logged

Offline Frostyboy

  • Retired: Never was an
  • Expert
  • ****
  • Posts: 1,227
  • Circa 1951
Re: What is this and where does it go?
« Reply #11 on: July 08, 2013, 03:43:50 AM »

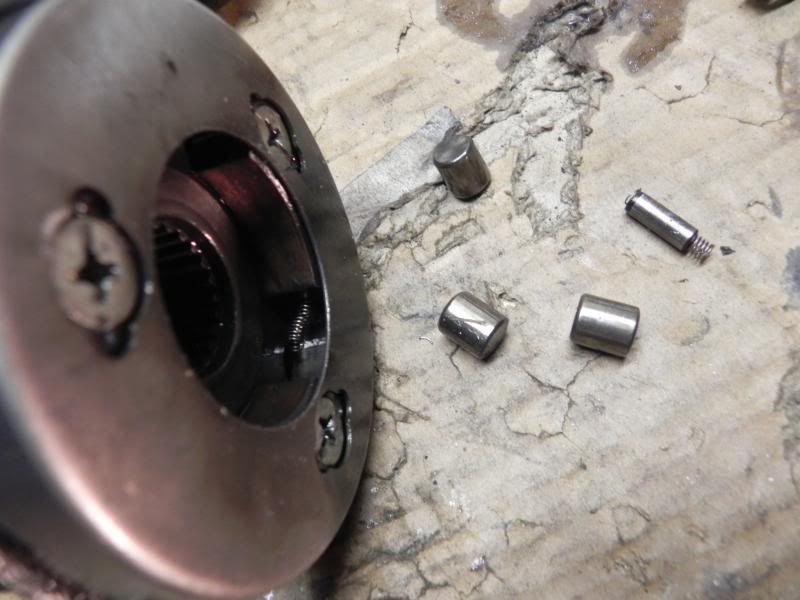

Is this it?
Logged
Last year I joined a support group for procrastinators.
We haven't met yet.
[CB550F1]

Offline stereosilence

  • Hot Shot
  • ***
  • Posts: 544
  • 1975 CB550K
Re: What is this and where does it go?
« Reply #12 on: July 08, 2013, 04:33:32 AM »
I think it may be. That would make sense why it is floating around.
Logged

Offline ttr400

  • Hot Shot
  • ***
  • Posts: 566
    • ttr400 Projects and Billet parts.
Re: What is this and where does it go?
« Reply #13 on: July 08, 2013, 05:08:00 AM »
If you had the gearbox out it could be one of 2 locating dowels for the needle bearing housing on the end of the main and counter shaft. or if you have removed the selector drum the pin/dowel for the selector fork.

Kevin
Logged
CB400F- 492 Yoshi Racer.
Cb400F- 466 Yoshi Cafe.
CR750 D Mann Replica.
VFR750R- RC30 - 1988.
www.ttr400.com
