Help ID this drive chain
« on: January 18, 2013, 07:59:41 PM »

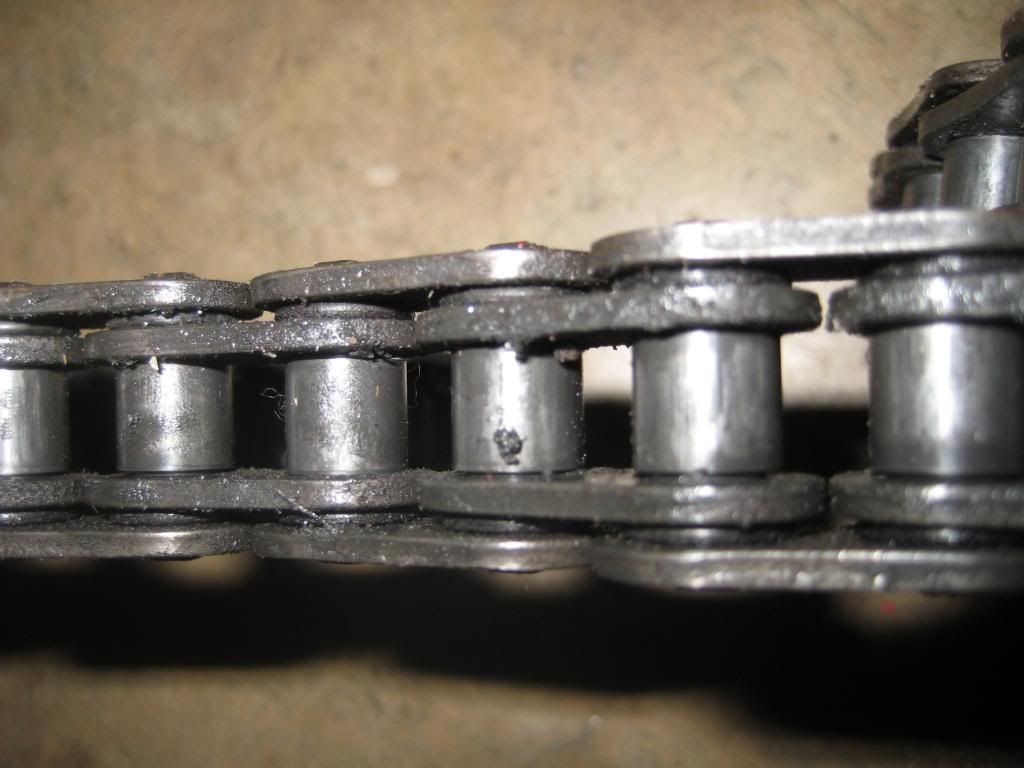

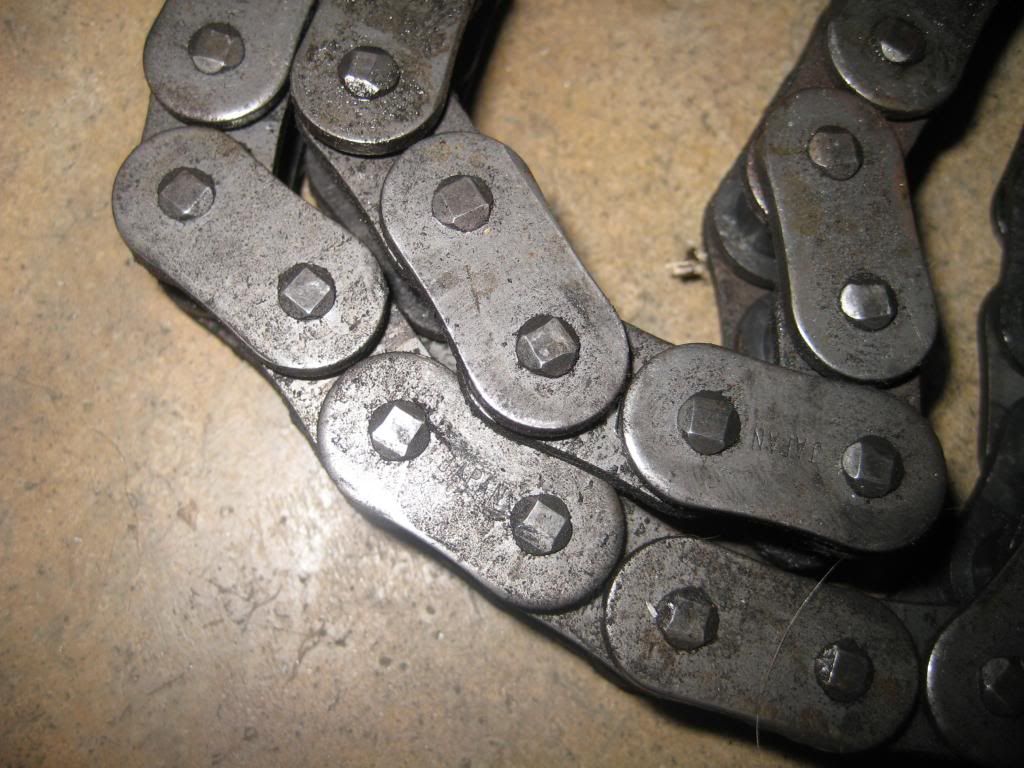

I need to get a new master link for this beast.  It is not a standard chain, has o-rings, but it is fatter than most chains.  My local shops do not have anything to fit it:



Logged
It is a proven fact that modifying a SOHC Honda in any way will bring on the apocalypse.

Offline trueblue

  • A person who has had many interesting experiences, some of which are true, is known as an
  • Old Timer
  • ******
  • Posts: 3,124
Re: Help ID this drive chain
« Reply #1 on: January 19, 2013, 02:41:35 AM »
This should help you out a little ;D

Metric Dimensions
Chain    Pitch    Width    Roller Diameter
415    12.70mm    4.88mm    7.75mm
420    12.70mm    6.35mm    7.75mm
428    12.70mm    7.75mm    8.51mm
520    15.88mm    6.35mm    10.16mm
525    15.88mm    7.85mm    10.16mm
530    15.88mm    9.53mm    10.16mm
532    15.88mm    9.53mm    11.10mm
630    19.05mm    9.53mm    11.91mm
632    19.05mm    9.66mm    12.68mm
Logged
1979 CB650Z
Nothing can be idiot proofed, the world keeps producing better idiots.
Electronic Guages for your SOHC 4

Offline nccb

  • Expert
  • ****
  • Posts: 1,145
  • 1974 CB750 Four
Re: Help ID this drive chain
« Reply #2 on: January 19, 2013, 05:34:43 AM »
its made in Japan if that helps ;D
Logged

Offline Matthew

  • Full Member
  • *
  • Posts: 4
Re: Help ID this drive chain
« Reply #3 on: January 19, 2013, 12:55:45 PM »
What bike and year is it on? Maybe a 630? 77-78?
Logged

Offline Nikkisixx

  • Expert
  • ****
  • Posts: 839
Re: Help ID this drive chain
« Reply #4 on: January 19, 2013, 01:27:05 PM »
Ha ha!   ;D Thanks guys.

Well, I tried a 630 master but the pins were too short to rivet the plate on.  I had a '78 and remember the 630 chain being large but this beast is chunky.
Logged
It is a proven fact that modifying a SOHC Honda in any way will bring on the apocalypse.

Offline trueblue

  • A person who has had many interesting experiences, some of which are true, is known as an
  • Old Timer
  • ******
  • Posts: 3,124
Re: Help ID this drive chain
« Reply #5 on: January 19, 2013, 03:06:09 PM »
If it was a standard 630 then the pins will be too short, you will need an o-ring chain specific link.  They are a little longer to allow for the o-ring.
Logged
1979 CB650Z
Nothing can be idiot proofed, the world keeps producing better idiots.
Electronic Guages for your SOHC 4

Offline Matthew

  • Full Member
  • *
  • Posts: 4
Re: Help ID this drive chain
« Reply #6 on: January 19, 2013, 04:28:49 PM »
Quote from: trueblue on January 19, 2013, 03:06:09 PM
If it was a standard 630 then the pins will be too short, you will need an o-ring chain specific link.  They are a little longer to allow for the o-ring.

I agree two 630 master link pins sounds like you have the short non o-ring link.
Logged

Offline Nikkisixx

  • Expert
  • ****
  • Posts: 839
Re: Help ID this drive chain
« Reply #7 on: January 19, 2013, 07:05:34 PM »
I just ordered a 630 o-ring master.  When no shop in  town seemed to have something that fit I believed it was some kind of odd ball chain.  Nothing else on this bike is stock, and the PO didn't pass on any info.  Thanks again fellas!
Logged
It is a proven fact that modifying a SOHC Honda in any way will bring on the apocalypse.

Offline 754

  • Really Old Timer ...
  • *******
  • Posts: 29,046
Re: Help ID this drive chain
« Reply #8 on: January 19, 2013, 08:01:53 PM »
First I would do is mike the pin, seems to be a lot of variance in pin sizes and withs,once you get into O &X ring chains.
Logged
Maker of the WELDLESS 750 Frame Kit
dodogas99@gmail.com
Kelowna B.C.       Canada

My next bike will be a ..ANFOB.....

It's All part of the ADVENTURE...

73 836cc.. Green, had it for 3 decades!!
Lost quite a few CB 750's along the way

Offline Nikkisixx

  • Expert
  • ****
  • Posts: 839
Re: Help ID this drive chain
« Reply #9 on: January 20, 2013, 06:46:08 AM »
That is good advice 754.  Problem is the online sources don't show the size of the part so all I can do is order a couple and measure the new when they get here.  At least master links aren't expensive, just a PIA.
Logged
It is a proven fact that modifying a SOHC Honda in any way will bring on the apocalypse.

Offline nccb

  • Expert
  • ****
  • Posts: 1,145
  • 1974 CB750 Four
Re: Help ID this drive chain
« Reply #10 on: January 20, 2013, 06:49:30 AM »
go to your local bike shop or cyclegear that way you can see the links then you won't have to wait.
Logged
