CB550 Rear disc conversion
« on: August 16, 2012, 08:13:03 PM »
So I saw a video on youtube where a guy used a 750 hub and disc for a rear disc conversion on a 550 and I started wondering if a 750 front hub will fit a 550 rear axle without any mods?
Logged
Everyone Pities the weak, Jealousy must be earned

Offline dave500

  • Really Old Timer ...
  • *******
  • Posts: 17,182
  • WHAT?no gravy?
Re: CB550 Rear disc conversion
« Reply #1 on: August 17, 2012, 12:10:34 AM »
how will the drive sprocket bolt on?the 500/550 and 750 share the same front hub.
Logged

Offline fastbroshi

  • Puppet
  • Old Timer
  • ******
  • Posts: 2,645
Re: CB550 Rear disc conversion
« Reply #2 on: August 17, 2012, 02:36:32 AM »
I think the easy way to approach it would be to just grab the whole rear end off of a 750F.  Slightly longer swingarm but the pivot point width on the 750 arm should be real close to the 550.  Might have to shim out/in the sprockets.
Logged
Just call me Timmaaaaay!!!

Offline fishhead

  • Hot Shot
  • ***
  • Posts: 598
  • Why don't you go.....Well, you know the rest.....
Re: CB550 Rear disc conversion
« Reply #3 on: August 17, 2012, 04:03:03 AM »
Using a front wheel for the rear is not easily done. A mill and a lathe help alot.
 Using a 750 disc/rear wheel and swingarm would get you more than halfway there.

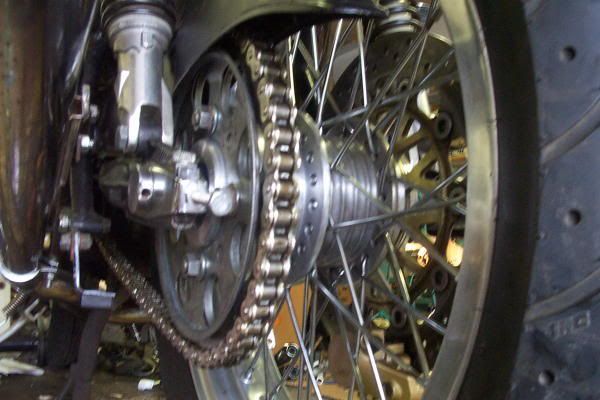

Pics are a 750 front wheel converted to rear wheel use on a 750. Bearings needed to be changed to 20mm, adapters needed for sprocket and disc, new axle spacers needed, caliper mount made,etc...
