Author Topic: name that doohickey!  (Read 1569 times)

0 Members and 1 Guest are viewing this topic.

Offline fivestring

  • not 1/4, not 1/2, not 3/4, but a
  • Full Member
  • *
  • Posts: 33
name that doohickey!
« on: February 27, 2013, 08:42:08 AM »

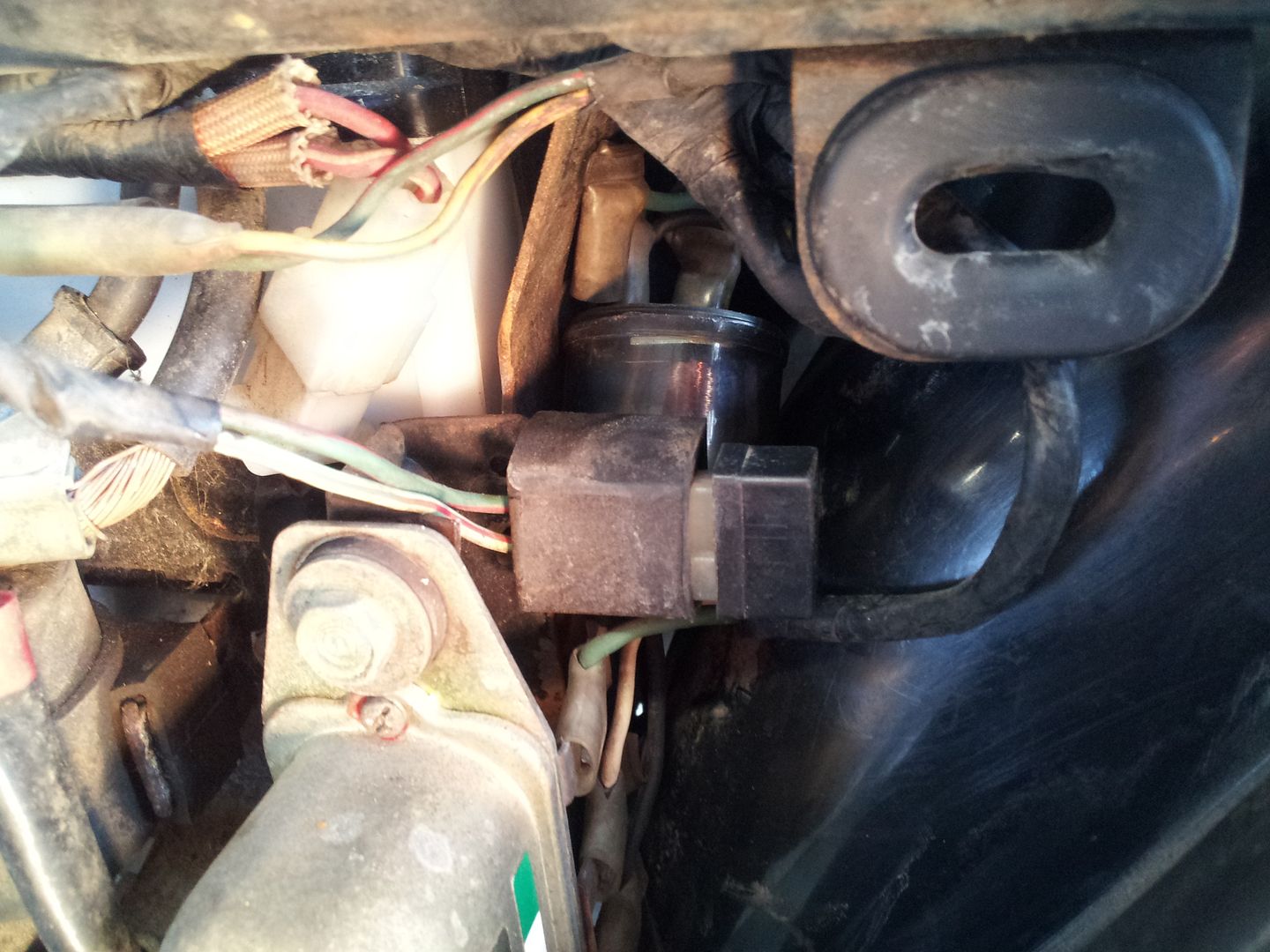

This little thing is mounted in rubber just above the regulator on a K8.

So what is it? Two wires go to it. One is dark green with red stripe. Second wire is light green with red stripe.
Logged
destroying classic metrics one bike at a time
'78 KZ1000A2A hardtail, '78 CB750K, '81 XJ650, '83 XJ650

Offline knowsnothing

  • Hot Shot
  • ***
  • Posts: 637
Re: name that doohickey!
« Reply #1 on: February 27, 2013, 08:43:57 AM »
Its the flasher relay
Logged
1978 CB750k Green - 811 engine
1978 CB750k Blue - for sale
1974 CB375F Faded Black - had to have that 6th gear
1976 CB400F Red - in many pieces
1973 CB350F TBD - in many pieces

Offline fivestring

  • not 1/4, not 1/2, not 3/4, but a
  • Full Member
  • *
  • Posts: 33
Re: name that doohickey!
« Reply #2 on: February 27, 2013, 08:45:48 AM »
No. That is behind this thing and I just replaced the old flasher with a new one.
Logged
destroying classic metrics one bike at a time
'78 KZ1000A2A hardtail, '78 CB750K, '81 XJ650, '83 XJ650

Offline madmtnmotors

  • When did I get to be a
  • Really Old Timer ...
  • *******
  • Posts: 6,152
  • Sunny Central Florida
Re: name that doohickey!
« Reply #3 on: February 27, 2013, 08:46:48 AM »
Quote from: knowsnothing on February 27, 2013, 08:43:57 AM
Its the flasher relay

BUZZZZZZZZZZZZZZZZ!

Nope, the little square one is the starter safety. You can see the round flasher relay beyond.
Logged
TAMTF...


Wilbur



Projects:
"Evolution": http://forums.sohc4.net/index.php?topic=100352.0
"P.O. Debacle": http://forums.sohc4.net/index.php/topic,126692.msg1441661.html#msg1441661
F2/F3 O-rings: http://forums.sohc4.net/index.php?topic=113672.msg1300721#msg1300721
Cam Tower Studs: https://www.mcmaster.com/#93210a017/=t19sgp
Clean up that nasty harness: http://forums.sohc4.net/index.php?topic=137351.msg1549191#msg1549191
http://forums.sohc4.net/index.php/topic,148188.msg1688494.html#msg1688494
http://forums.sohc4.net/index.php/topic,139544.msg1579364.html#msg1579364

Charging system diagnosis: http://forums.sohc4.net/index.php?topic=1012.msg8345#msg8345
Get the manuals: http://manuals.sohc4.net/cb750k/
The Dragon: http://forums.sohc4.net/index.php?topic=45183.msg1571675#msg1571675
Headlight Switch: http://forums.sohc4.net/index.php?topic=113986.msg1283236#msg1283236
Branden's leak free top end thread: http://forums.sohc4.net/index.php?topic=107040.0
Engine Lifting Made Easy: http://forums.sohc4.net/index.php/topic,58210.msg1684742.html#msg1684742
                                      http://forums.sohc4.net/index.php/topic,100352.msg1675840.html#msg1675840
Static and Dynamic Timing: http://www.hondachopper.com/garage/carb_info/timing/timing1.html
Airbox Gasket Replacement: http://forums.sohc4.net/index.php/topic,114485.msg1290000.html#msg1290000
"Café" : http://forums.sohc4.net/index.php/topic,84697.msg953814.html#msg953814
PD Carb Choke Linkage: http://forums.sohc4.net/index.php/topic,100352.msg1669248.html#msg1669248
                                    http://forums.sohc4.net/index.php/topic,110931.msg1248354.html#msg1248354
                                    http://forums.sohc4.net/index.php/topic,48858.msg515204.html#msg515204
Follow up on your damn posts: http://forums.sohc4.net/index.php/topic,144305.msg1791605.html#msg1791605
Taiwanese Cam Chain Tensioners:  http://forums.sohc4.net/index.php/topic,155043.msg1774841.html#msg1774841
Gumtwo Seat Cover: http://forums.sohc4.net/index.php/topic,164440.msg1897366.html#msg1897366
Primary Drive: http://forums.sohc4.net/index.php/topic,166063.msg1919278.html#msg1919278
Tank Latch: http://forums.sohc4.net/index.php/topic,165975.msg1919495.html#msg1919495
Shorten your forks: http://vintage-and-classic-honda-s.456789.n3.nabble.com/How-to-shorten-forks-td4042465.html DO NOT CUT THE SPRINGS!
Clutch How To: http://vintage-and-classic-honda-s.456789.n3.nabble.com/How-to-change-and-adjust-a-clutch-SOHC-td4040391.html
Late model K7/K8/F2/F3 front sprocket cover removal: http://forums.sohc4.net/index.php/topic,178428.msg2072279.html#msg2072279
630 to 530 conversion: http://forums.sohc4.net/index.php/topic,180710.msg2094423.html#msg2094423

Sent from my Tandy TRS-80!

Offline Deltarider

  • Really Old Timer ...
  • *******
  • Posts: 8,600
Re: name that doohickey!
« Reply #4 on: February 27, 2013, 08:47:13 AM »
It's the diode.
Logged
CB500K2-ED Excel black
"There's enough for everyone's need, not enough for anyone's greed." Mahatma Ghandi

Offline knowsnothing

  • Hot Shot
  • ***
  • Posts: 637
Re: name that doohickey!
« Reply #5 on: February 27, 2013, 09:15:43 AM »
Quote from: madmtnmotors on February 27, 2013, 08:46:48 AM
Quote from: knowsnothing on February 27, 2013, 08:43:57 AM
Its the flasher relay

BUZZZZZZZZZZZZZZZZ!

Nope, the little square one is the starter safety. You can see the round flasher relay beyond.

 ;D
Logged
1978 CB750k Green - 811 engine
1978 CB750k Blue - for sale
1974 CB375F Faded Black - had to have that 6th gear
1976 CB400F Red - in many pieces
1973 CB350F TBD - in many pieces

Offline LesterPiglet

  • Old Timer
  • ******
  • Posts: 4,045
  • 1977 CB550F2
Re: name that doohickey!
« Reply #6 on: February 27, 2013, 09:41:23 AM »
Yep, starter safety diode.

Logged
'Then' and 'than' are completely different words and have completely different meanings. Same with 'of' and 'have'. Set and sit. There, their and they're. Draw and drawer. Could care less/couldn't care less. Bought/brought FFS.


Les Ross.            Certified by a Professional

Offline aggiepike

  • Full Member
  • *
  • Posts: 88
    • Compare and Save on Electric Rates in TX
Re: name that doohickey!
« Reply #7 on: February 27, 2013, 11:05:11 AM »
yup it's that doohickey. good eye, good eye.  ;)
Logged
K1 CB750 (836)

Offline fivestring

  • not 1/4, not 1/2, not 3/4, but a
  • Full Member
  • *
  • Posts: 33
Re: name that doohickey!
« Reply #8 on: February 27, 2013, 11:46:00 AM »

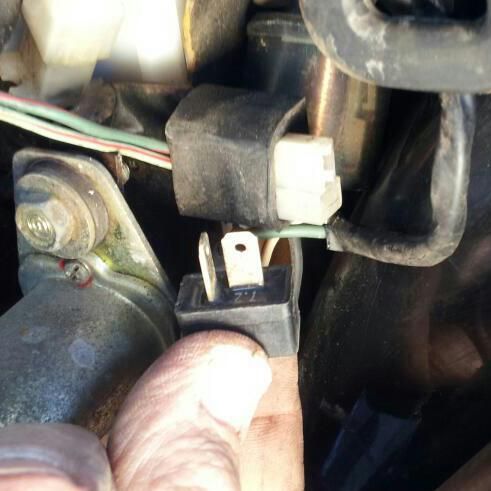

OK a starter safety diode. So a diode has one-way continuity,  right? This thing allows flow in both direction per my dmm.  What is it's purpose?
Logged
destroying classic metrics one bike at a time
'78 KZ1000A2A hardtail, '78 CB750K, '81 XJ650, '83 XJ650

Offline metalhead0283

  • Enthusiast
  • **
  • Posts: 113
  • speed on brother hell aint half full
Re: name that doohickey!
« Reply #9 on: February 27, 2013, 02:31:47 PM »
id like to know its purpose too...if it aint needed its gone!
Logged
77 xs650  81 xs650  76 cb550f  2010 triumph street triple

Offline LesterPiglet

  • Old Timer
  • ******
  • Posts: 4,045
  • 1977 CB550F2
Re: name that doohickey!
« Reply #10 on: February 27, 2013, 03:16:10 PM »
To prevent the starter operating whilst in gear without first pulling the clutch.

Sent from my GT-S5363 using Tapatalk 2

Logged
'Then' and 'than' are completely different words and have completely different meanings. Same with 'of' and 'have'. Set and sit. There, their and they're. Draw and drawer. Could care less/couldn't care less. Bought/brought FFS.


Les Ross.            Certified by a Professional

Offline metalhead0283

  • Enthusiast
  • **
  • Posts: 113
  • speed on brother hell aint half full
Re: name that doohickey!
« Reply #11 on: February 27, 2013, 03:27:48 PM »
sweet its gone then!
Logged
77 xs650  81 xs650  76 cb550f  2010 triumph street triple

Offline Patrick

  • Expert
  • ****
  • Posts: 1,398
Re: name that doohickey!
« Reply #12 on: February 27, 2013, 04:44:24 PM »
Only if you plan to kick start only. The diode completes the ground on the starter circuit. You can take it out, but you have to supply an alternate ground.
Logged
1970 CB750 K0
1982 VF750S Sabre
1987 VT1100 Shadow
1979 Yamaha XS11
1969 Yamaha DT1B
etc.

Offline LesterPiglet

  • Old Timer
  • ******
  • Posts: 4,045
  • 1977 CB550F2
Re: name that doohickey!
« Reply #13 on: February 27, 2013, 04:53:40 PM »
I think you can just remove it and bridge it with a wire loop. I had mine bypassed at one stage but can't remember exactly how I did it.

Sent from my GT-S5363 using Tapatalk 2

Logged
'Then' and 'than' are completely different words and have completely different meanings. Same with 'of' and 'have'. Set and sit. There, their and they're. Draw and drawer. Could care less/couldn't care less. Bought/brought FFS.


Les Ross.            Certified by a Professional

Offline metalhead0283

  • Enthusiast
  • **
  • Posts: 113
  • speed on brother hell aint half full
Re: name that doohickey!
« Reply #14 on: February 27, 2013, 06:07:41 PM »
im rewiring my bike...gutting everything out not needed...starter is being removed n no blinkers so anything that goes with that is going
Logged
77 xs650  81 xs650  76 cb550f  2010 triumph street triple

Offline TwoTired

  • Really Old Timer ...
  • *******
  • Posts: 21,802
Re: name that doohickey!
« Reply #15 on: February 27, 2013, 06:17:18 PM »
The diode keeps the neutral light from illuminating when the clutch is pulled in, and allows the engine to electric start when either the trans is in neutral or anytime the clutch is pulled in.
Logged
Lloyd... (SOHC4 #11 Original Mail List)
72 500, 74 550, 75 550K, 75 550F, 76 550F, 77 550F X2, 78 550K, 77 750F X2, 78 750F, 79CX500, 85 700SC, GL1100

Those that learn from history are doomed to repeat it by those that don't learn from history.

Offline bjbuchanan

  • Master
  • *****
  • Posts: 2,274
Re: name that doohickey!
« Reply #16 on: February 27, 2013, 06:19:58 PM »
You can delete it by grounding dark green/red wire. The diode is used as a way to make the neutral sensor and clutch safety switch play nicely together

Ground the green/red off the starter solenoid. You can now delete the clutch perch switch and have no ill effects

It is more a redundancy to make a bike more safe for people who don't ride or don't know basics of safe riding. Always check to see if in gear before starting, or pull in clutch. Without it someone inexperienced could really get hurt
Logged
The dirty girl-1976 cb750k, Ebay 836, Tracy bodykit
Round top carbs w/ 38 pilots, middle needle position, airscrew 7/8ths out, 122 main jet
Stock airbox w/ drop in K&N, Hooker 4-1

Don't trust me alone with a claw hammer and some pliers

Offline fivestring

  • not 1/4, not 1/2, not 3/4, but a
  • Full Member
  • *
  • Posts: 33
Re: name that doohickey!
« Reply #17 on: February 27, 2013, 09:05:46 PM »
Great answers, thanks gents. I'm leaving mine alone for now, just familiarizing myself to the details of this bike should I find myself roadside with an electrical issue.
Logged
destroying classic metrics one bike at a time
'78 KZ1000A2A hardtail, '78 CB750K, '81 XJ650, '83 XJ650
